All-in-One Solar Street Light – Efficient and Easy Outdoor Lighting
|
The All-in-One Solar Street Light is the perfect solution for outdoor lighting, combining a solar panel, LED light, and lithium battery in one compact unit. It's designed to be easy to install, with no need for wiring or external power sources. Just place it where you need it, and it’ll do the rest, providing reliable lighting while saving on energy costs. With its high-efficiency solar panel, this light captures sunlight even on cloudy days, and the bright LED lights ensure your streets, pathways, or parking areas are well-lit throughout the night. Plus, the motion sensor adjusts the brightness when needed, saving even more energy. Built to last with IP65 waterproof protection, it’s designed to handle all kinds of weather conditions. Whether you're lighting up a city street, a residential pathway, or a public park, this solar light offers a low-maintenance, eco-friendly way to keep your outdoor spaces safe and bright. Best of all, it helps you cut down on electricity costs by up to 80% while providing lighting that lasts for 10-15 years with minimal upkeep. |
All In One Solar Street Lights Feature Box
|
"This integrated solar street lighting solution seamlessly consolidates monocrystalline panels, smart controllers, Lithium batteries, and premium LEDs into a singular, high-performance unit. Engineered specifically for urban arteries, rural pathways, and commercial landscapes, it addresses the need for energy independence and rapid deployment. Jieyao’s all-in-one design ensures intelligent illumination and long-term reliability for diverse outdoor infrastructure projects." |
|
|
|
|
|
|
Energy Efficiency Boasts up to 200lm/W light efficiency with SMD3030/5050 LED chips and optimized lens design for uniform illumination. |
Integrated Design All-in-one structure with detachable battery and LED modules for cost-effective shipping, installation, and maintenance. |
MPPT Solar Control Equipped with MPPT controller for maximum power point tracking, ensuring efficient solar energy conversion and 6-hour fast charging. |
Smart Power Management 4th Gen AI power adjustment optimizes discharge based on weather, extending runtime and supporting up to 12 consecutive hours of lighting with adaptive dimming profiles. |
|
|
|
|
|
|
Weather Resistance IP65/IP66 protection rating, -40°C~+85°C working temperature range, and anti-corrosion aluminum or Q235 HDG steel materials for harsh outdoor environments. |
LiFePO4 Battery High-capacity LiFePO4 battery with 2000+ cycles, BMS protection, and low self-discharge rate for long lifespan and reliable performance. |
Multiple Power & CCT Options Available in 20W-120W power range and 3000K-6500K color temperature to adapt to different road widths and lighting scenarios. |
5 Years Warranty Comprehensive 5-year warranty covering components, ensuring long-term reliability and minimizing maintenance costs. |
PRODUCT ADVANTAGES
|
|
Green and energy-saving Powered by solar energy, no external power supply is required, reducing carbon emissions, in line with the concept of sustainable development. High-efficiency monocrystalline silicon/polycrystalline silicon solar panels, light energy conversion efficiency of 18%-23%, ensuring stable power storage on rainy days. |
|

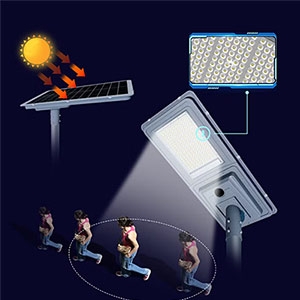

Light control + time control + human body sensing: automatically sense ambient light, light at dark, turn off at dawn; can set working time period; some models support human movement sensing, light turns on when people are close, energy saving is more efficient. Wireless installation: integrated structural design, no need to dig trenches for wiring, can be wall-mounted, pole-mounted or buried, saving 90% of construction costs. |
|
|
|
High-capacity lithium battery: cycle life of more than 2,000 times, support 3-5 consecutive rainy days. IP65/67 protection level: dustproof and waterproof, adapt to extreme environments from -20ºC to 60ºC, wind and earthquake resistant. Long-life LED light source: service life exceeds 50,000 hours, low light decay, brightness can reach 3,000-10,000 lumens (depending on model). |
PRODUCT SPECIFICATION
|
(Item) |
(Specification) |
(Item) |
(Specification) |
|
Model NO. |
JIEYAO-66588 |
Lamp Body Material |
Aluminum/Stainless Steel/Galvanized |
|
Power |
>200W |
Application |
Square, Highway, Garden, Parking Lot |
|
IP Rating |
IP67 |
Certification |
CCC, CE, RoHS, ISO, ISO9001 ISO14001 ISO45001 |
|
Input Voltage |
18V |
With Light Source |
With Light Source |
|
LED Chips Brand |
Famous Brand |
Warranty |
5 Years |
|
Working Temperature |
-30~+70 |
Illumination Time |
8h |
|
Technics |
Painted Matte |
Cell Type |
Ni-MH Battery |
|
Light Efficiencye |
150-180lm/W |
Viewing Angle |
140*70 Degree |
|
Transport Package |
Bubble Cartons or Customized |
Specification |
200.00cm * 200.00cm * 1000.00cm |
|
Trademark |
JIEYAO |
Origin |
China |
LED Fixture: >50,000 hours; Solar Panel: 25 years; Lithium Battery: 5-8 years; Controller: 5-10 years.
We offer a 3-5 year full-system warranty. If a quality issue arises, we will ship free replacement parts immediately after verification.
Yes. We provide specialized batteries for extreme climates, including heating films for cold regions and heat-resistant lithium cells for tropical environments.
To give you a straight answer: Yes, the upfront cost of a Solar LED Street Light is higher than a traditional AC LED light. However, if you look at the "Total Cost of Ownership," solar often wins by a landslide.
We use reinforced cartons and wooden pallets to prevent damage during long-distance transit. For large projects, we recommend FCL (Full Container Load) sea freight to minimize shipping costs.
Our solar street lights carry CE, RoHS, IP66, IK10, and ISO 9001 certifications, meeting the standards for government and commercial projects worldwide.
Yes. We can customize power output, battery capacity, logo branding, and even industrial design based on your project requirements.
In dusty or low-rainfall areas, we recommend cleaning every 6 months. Heavy dust accumulation can reduce charging efficiency by over 20%.
This is usually due to battery aging, panels being shaded causing insufficient charge, or incorrect controller settings. We can assist you with remote troubleshooting.
No. It is a self-contained power system that requires no trenching, wiring, or grid connection, significantly reducing installation and labor costs.
The optimal angle depends on your local latitude. Generally, panels should face the equator (South in the Northern Hemisphere) at an angle equal to your latitude plus $5^{\circ}$ to $15^{\circ}$.
We primarily use LiFePO4 (Lithium Iron Phosphate) batteries. Compared to Gel or Lead-acid batteries, LiFePO4 offers a much longer cycle life (over 2000 cycles) and superior high-temperature resistance.
Monocrystalline panels offer higher efficiency (above 20%) and perform better in low light, making them ideal for all-in-one designs. Polycrystalline panels are more budget-friendly for large-scale projects.
Yes. Our systems are engineered with "Autonomy Days," typically supporting 3-5 consecutive days of illumination even in complete absence of direct sunlight.
Our products are designed to illuminate for 10-12 hours per night. With intelligent controllers, we can customize lighting modes, such as full power for the first 4 hours and energy-saving mode thereafter.
