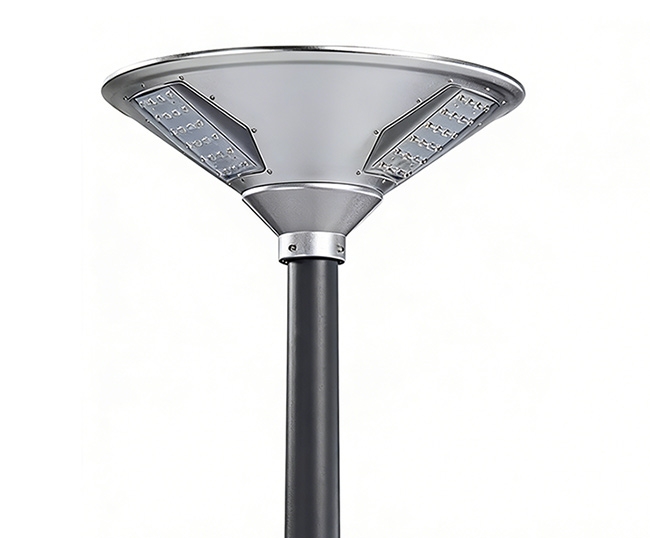

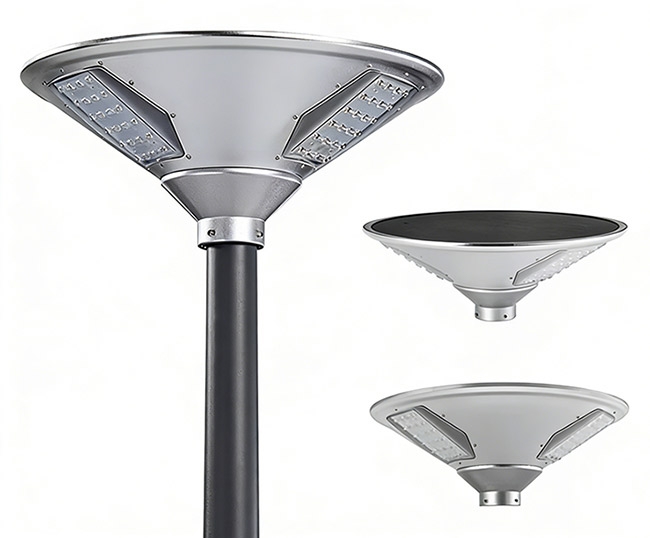

Solar UFO Garden Light engineered with high-efficiency LED chips and a durable die-cast aluminum housing. This IP65 waterproof fixture features a patented aesthetic design and 20/30W output, powered by a long-lasting LiFePO4 battery. Ideal for zero-maintenance landscape lighting in courtyards, parks, and pathways.
|
|

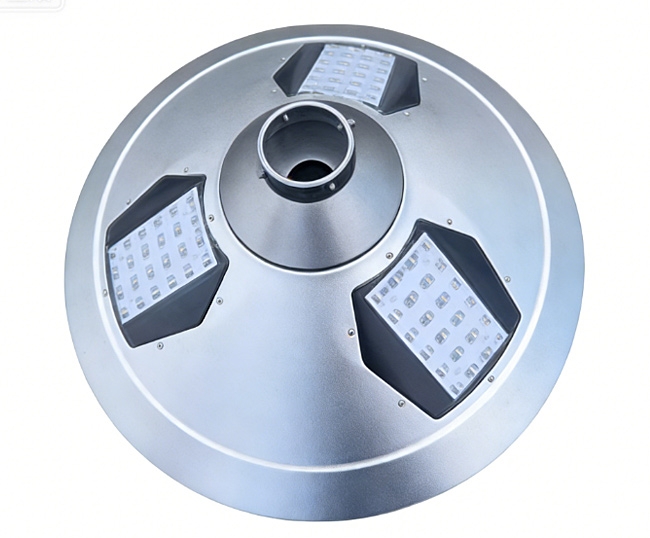

Utilizing premium 3030 LED modules, the system achieves a luminous efficacy exceeding 150lm/W, balancing high output with energy economy. Integrated with top-tier sources from OSRAM, Bridgelux, or Philips, it delivers a 50,000-hour operational lifespan, significantly minimizing maintenance and replacement overhead. |
|
|

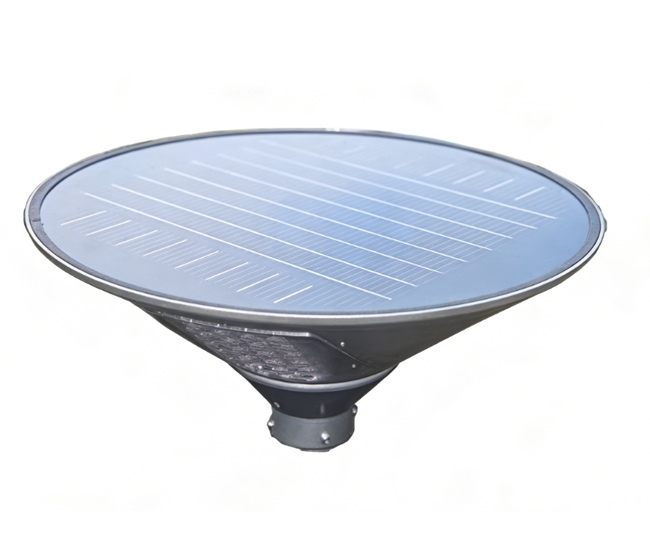

Featuring high-efficiency monocrystalline silicon panels, this solar system achieves a 22% photoelectric conversion rate. It maximizes solar energy harvesting to ensure a reliable power reservoir, maintaining consistent lighting performance even during periods of low solar radiation. This robust power supply guarantees uninterrupted operation across all environmental conditions. |
High Quality LifePo4 Battery Equipped with a high-capacity LiFePO4 battery, this system ensures safety and exceptional reliability, sustaining 5–7 days of continuous illumination during prolonged rain. Featuring integrated overcharge/overdischarge protection, it delivers a 2,000+ cycle life for stable, long-term performance in demanding outdoor environments. |
|

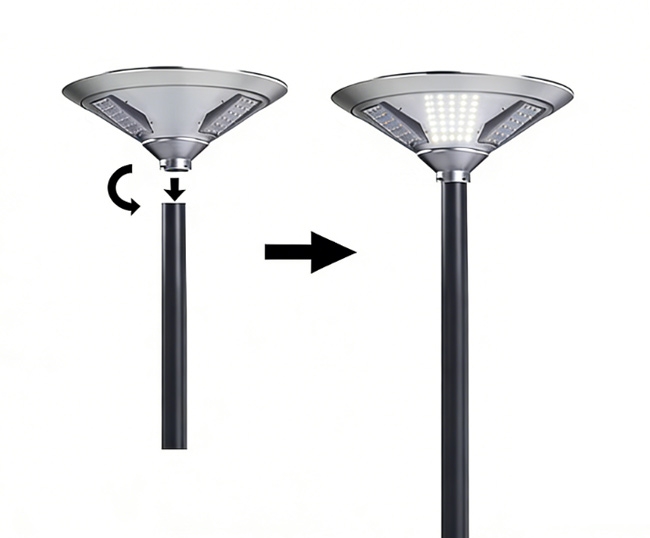

| Solar Garden Street Lamp SunTop Series Constructed from rugged die-cast aluminum, the main housing ensures superior structural integrity and optimized thermal dissipation. The cable-free integrated design eliminates complex wiring, enabling rapid, hassle-free installation for any outdoor project. |
Intelligent Sensor And Dimming Control
Multi-mode working system, light control + time control, automatically turns on the lights at sunset, and can be set to turn off the lights at 3, 5, and 8
hours. It supports PIR human body sensing (fully illuminated when a person comes and half illuminated when they leave)
and microwave radar sensing , reducing power consumption by over 60%.
|
Y series integrates MovingTrack MPPT technology to achieve superior tracking efficiency and rapid response. Featuring a smart DC detection system, the unit automatically switches to mains power once the battery hits the DC threshold. In the absence of DC input, the system ensures continuous discharge until reaching the over-discharge protection point, where it safely terminates output to preserve battery health. |

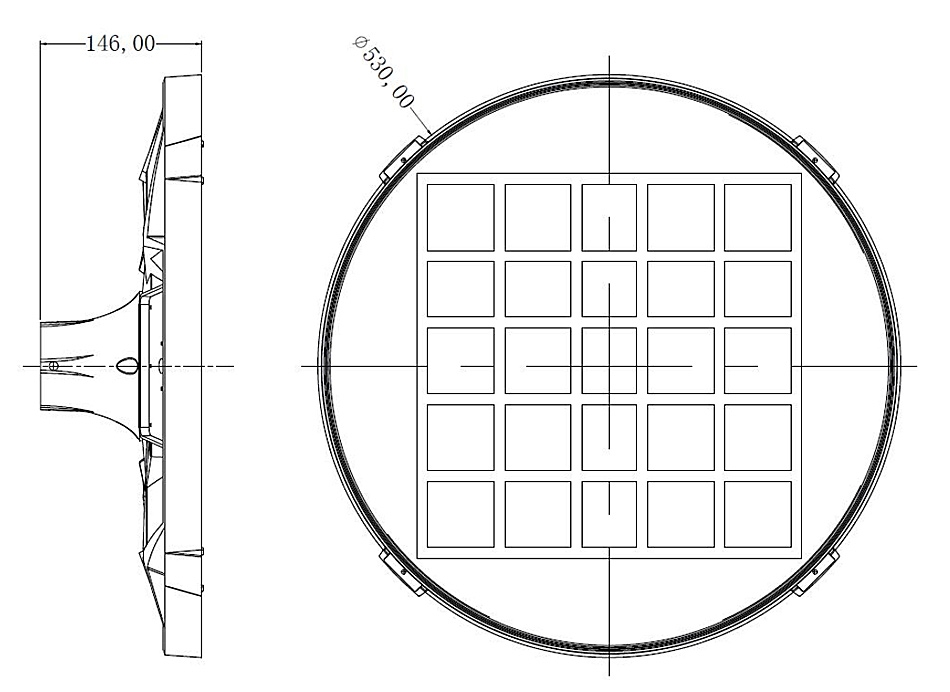

Size of Solar UFO Garden Street Lamp

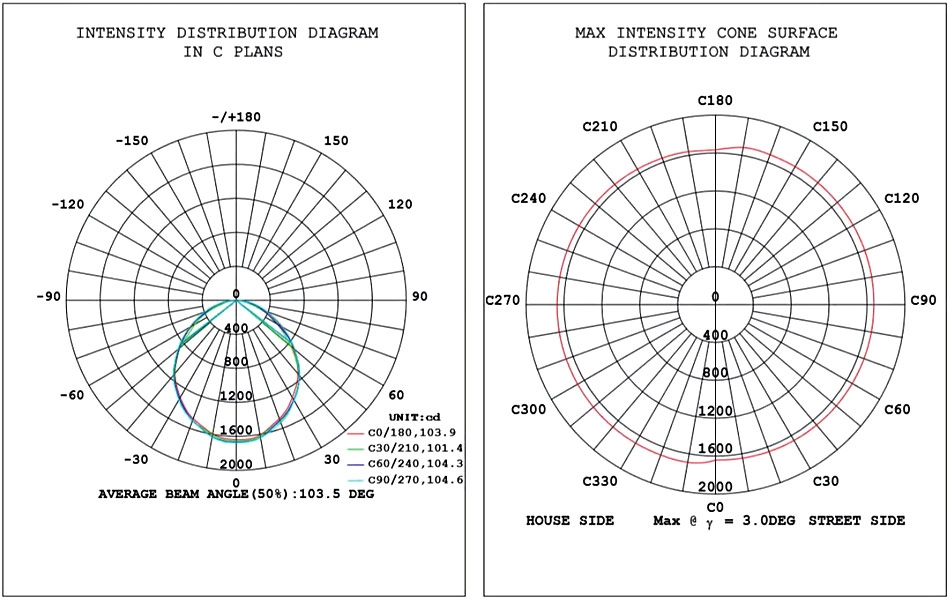

Solar Garden Street Lamp Professional Light Distribution
The professionally designed light distribution solution is tailored to the different needs of road lighting and regional lighting.
It can precisely control the direction and range of light projection, evenly distributing the light over the areas that need illumination.
This improves the brightness and uniformity of lighting.
Datasheet Of Solar UFO Garden Street Light
Model No. | JYZM-20 | JYZM-30 |
Power | 20W | 30W |
Light efficiency | 150lm/W | |
LED Type | SMD3030 | |
Beam Angle | 75×140° | |
Battery | 18V 25W LiFePO4 battery | 18V 30W LiFePO4 battery |
Control Mode | MPPT | |
PF | >0.9 | |
LED Lifespan | >50000 hours | |
IP | IP65 | |
CRI | >80 | |
CCT | 3000K/5000K/5700K/6500K | |
Working temperature | -20℃ – +60℃ | |
Size | Φ530x146mm | |
Warranty | 5 Years | |

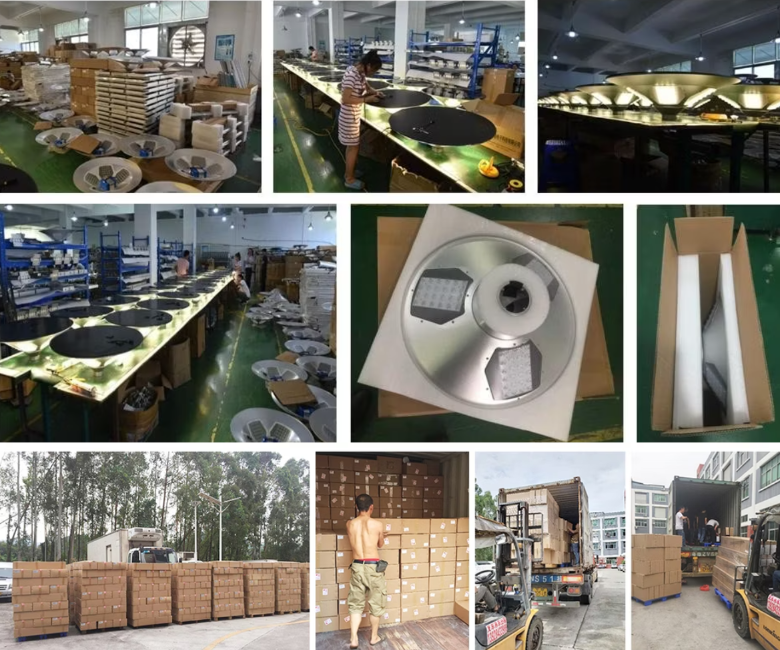

Solar UFO Garden Light Manufacturing and Global Delivery

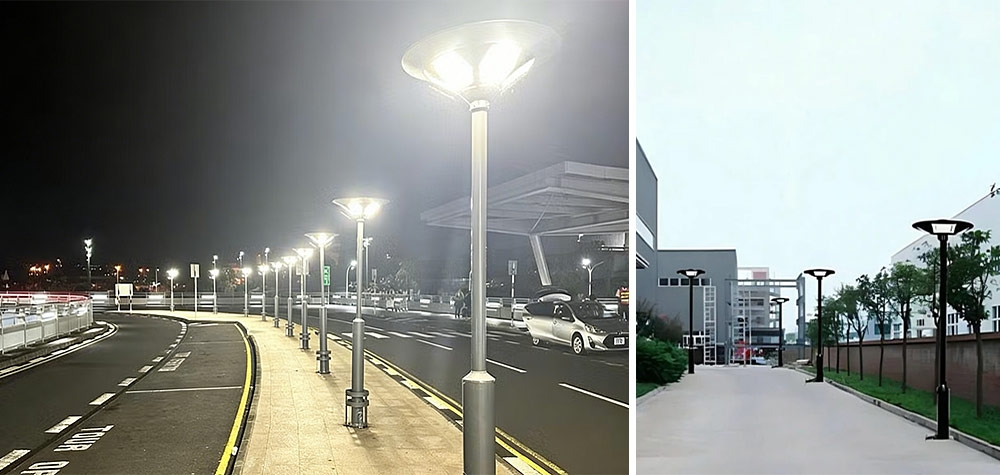

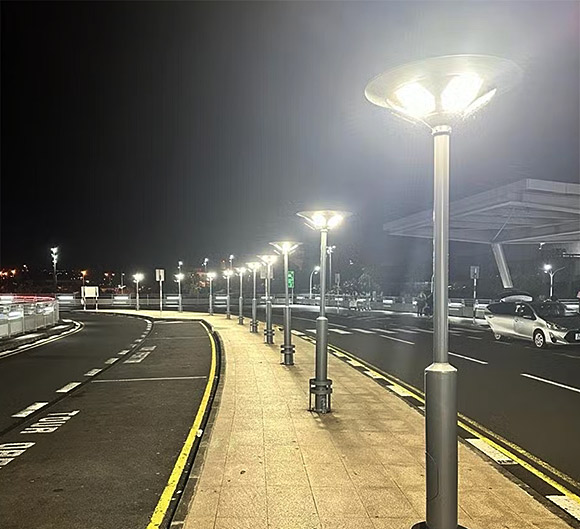

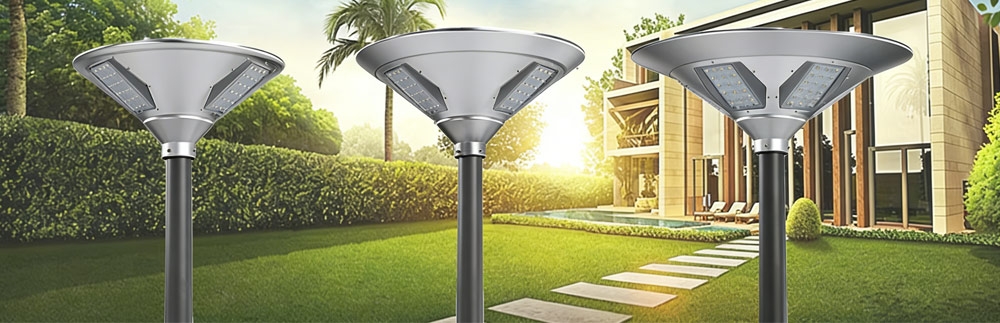

Solar UFO Garden Light Illumination Project
This Solar UFO Garden Light project demonstrates the perfect balance between architectural aesthetics and functional performance. Designed for versatile outdoor environments, the fixture’s circular 360° beam angle provides uniform light distribution, eliminating the dark corners typically found with traditional directional lamps. From high-end residential courtyards to expansive public parks, this UFO solar solution offers a sustainable, maintenance-free alternative to grid-powered lighting. |
OEM & ODM Solar UFO Lighting Solutions We provide full customization for distributors and project contractors: Private label branding Customized solar panel and battery system Project-specific lighting configuration Packaging design for local markets ------------------------------------------------------------------------------------------ Contact us directly for pricing and project support. Fast response, factory-direct supply, and customized lighting solutions available. Email: mr.xu@yzldzm.com | Tel: +86 13815843784 | WhatsApp: +86 13815843784 |
Frequently Asked Questions | Solar UFO Garden Lights
1. What is a Solar UFO Garden Light, and how does it differ from standard solar posts? The "UFO" name comes from its unique circular design, which provides 360° wide-angle illumination. Unlike traditional solar lights that cast a narrow beam in one direction, our UFO light ensures full-perimeter coverage, eliminating dark spots in your landscape.
2. Is the installation complicated? Do I need a professional electrician? No professional wiring is required. Our lights feature an all-in-one integrated design. Since they are 100% solar-powered, there are no underground cables to lay. You can easily mount the fixture on a pole or wall, making it a perfect plug-and-play solution for DIY projects or commercial sites.
3. Will the light still work during cloudy or rainy days? Yes. We use high-efficiency monocrystalline silicon solar panels that harvest energy even in low-light conditions. When fully charged, the system supports 5-7 nights of continuous illumination, ensuring your garden stays bright during prolonged bad weather.
4. What is the expected lifespan of the built-in battery? We use industrial-grade LiFePO4 (Lithium Iron Phosphate) batteries, which are safer and more durable than lead-acid alternatives. With over 2,000 charge cycles, the battery typically lasts 5 to 8 years before needing a replacement.
5. How much area can one UFO solar light effectively cover? At a recommended installation height of 10-15ft (3-4.5m), a single 20W/30W unit can illuminate an area of 500-800 square feet. The circular optical lens ensures even light distribution across the entire radius.
6. Can this light withstand extreme weather conditions? Absolutely. The housing is made of heavy-duty die-cast aluminum, which offers excellent thermal dissipation and structural integrity. With an IP65 waterproof rating, it is fully protected against heavy rain, snow, and salt-air corrosion in coastal areas.
7. Why do you use 3030 LED chips instead of cheaper alternatives? 3030 LED chips provide a superior luminous efficacy of 150lm/W. We source from world-class brands like Philips or Bridgelux to ensure maximum brightness with minimal energy consumption and a long-term lifespan of over 50,000 hours.
8. Does the light require manual operation every night? A: No. The fixture features an intelligent dusk-to-dawn sensor. It automatically activates at sunset and switches to charging mode at sunrise, providing a completely autonomous and maintenance-free lighting experience.
9. What is the recommended spacing for multiple light installations? A: For optimal path or perimeter lighting, we recommend a spacing of 30-50 feet (10-15 meters) between poles. This ensures overlapping light patterns for a continuous, safe environment.
10. Is there any maintenance required for these solar lights? A: Maintenance is minimal. To ensure maximum charging efficiency, we recommend wiping the solar panel every 6 months to remove dust or debris. There are no electricity bills and no bulb replacements to worry about.
11. How do I choose between the 20W and 30W models? A: The 20W model is ideal for residential courtyards and garden paths. The 30W model offers higher lumen output, making it better suited for commercial parking lots, public parks, and wider driveways.
12. Why should I choose your die-cast aluminum lights over cheaper plastic versions? A: Plastic solar lights often become brittle and yellow under UV exposure within a year. Our die-cast aluminum housing is built for longevity. Investing in professional-grade materials significantly reduces the Total Cost of Ownership by eliminating frequent replacement costs. |
We primarily use die-cast aluminum (with anti-corrosion coating), 316 stainless steel (ideal for coastal areas), and high-strength PC materials.
Path lighting usually uses 3-7W; decorative small trees suggest 5-10W; while large architectural wall washing or tall trees require 15-30W or more.
The main types include Bollard Lights, Spotlights, Inground Lights, Wall Washers, and decorative Path Lights.
We offer both. Low voltage systems (12V/24V) are safer for outdoor use and require no deep trenching for cables.
We use full glue-filling technology and vent valve designs, achieving IP67/IP68 ratings to effectively prevent condensation caused by temperature differences.
Yes. Our fixtures operate from -20°C to +50°C, and the heat generated by LEDs helps melt light snow on the surface.
We offer a 3-5 year warranty. For large-scale projects, warranty terms can be customized based on the contract.
Yes. Our products comply with CE, RoHS, and SAA certifications, and selected models have passed UL/ETL testing.
The IK rating represents resistance to mechanical impact. For bollard lights in public areas, we recommend at least an IK08 rating.
Yes. We support Zigbee, Bluetooth Mesh, and Wi-Fi control, compatible with Tuya or DALI systems.
Yes. Some bollard lights can integrate PIR sensors to achieve energy-saving effects like "bright when people arrive, dim when they leave."
The LED lifespan is the same, but solar lights require battery replacement every 3-5 years, whereas wired lights are more permanent.
Yes. As a manufacturer, we provide full ODM services, from 3D drawing to mold development.
This is usually due to voltage drop (long cables in low voltage systems) or mismatched drivers. Check the wire gauge or ｒｅｐｌａｃｅ the constant voltage driver.
Our LED inground lights are designed for heat dissipation, keeping surface temperatures very low and safe to touch, preventing burns to lawns or pets.
We use anti-corrosion aluminum alloys with anodizing or electrophoresis treatments to ensure no rust even in damp soil environments.
