● Reliable heat dissipation with air convection hollow design and high thermal conductivity aluminum for long-term stable operation. ● High-efficiency LED sources from renowned brands with up to 200lm/W luminous efficiency and 50,000hrs lifespan. ● Versatile options including dual glass choices, smart dimming compatibility, and optional microwave sensors. ● Multiple installation methods such as surface-mounted, sidewall, ceiling-mounted, and suspension rod. ● Robust waterproof structures (IP65/IP66) and impact resistance (IK08) for diverse environments. |
|
LED Flood Light Product Advantage
SIX ADVANTAGES AND CHARACTERISTICS

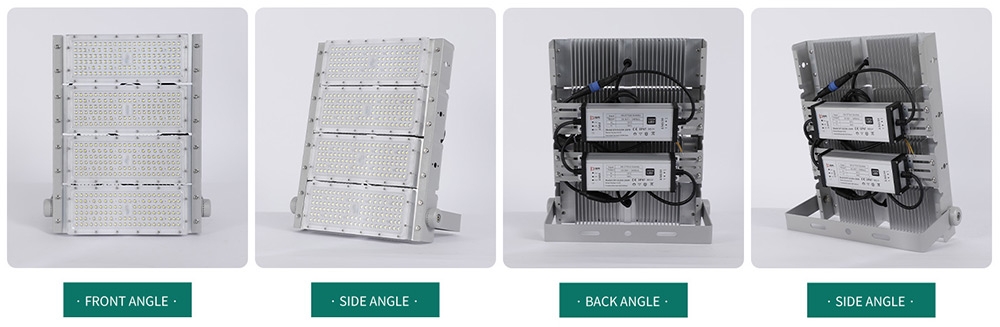

LED Flood Light Multi-angle Presentation
the actual shooting shows the appearance and details of the lamps from various angles

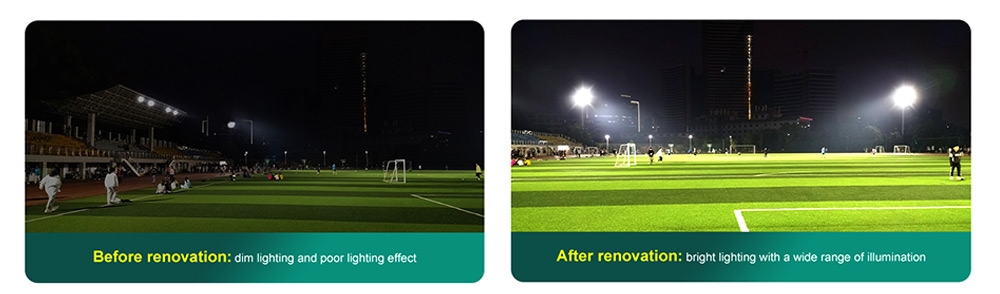

LED Flood Light Engineering Transformation
| |

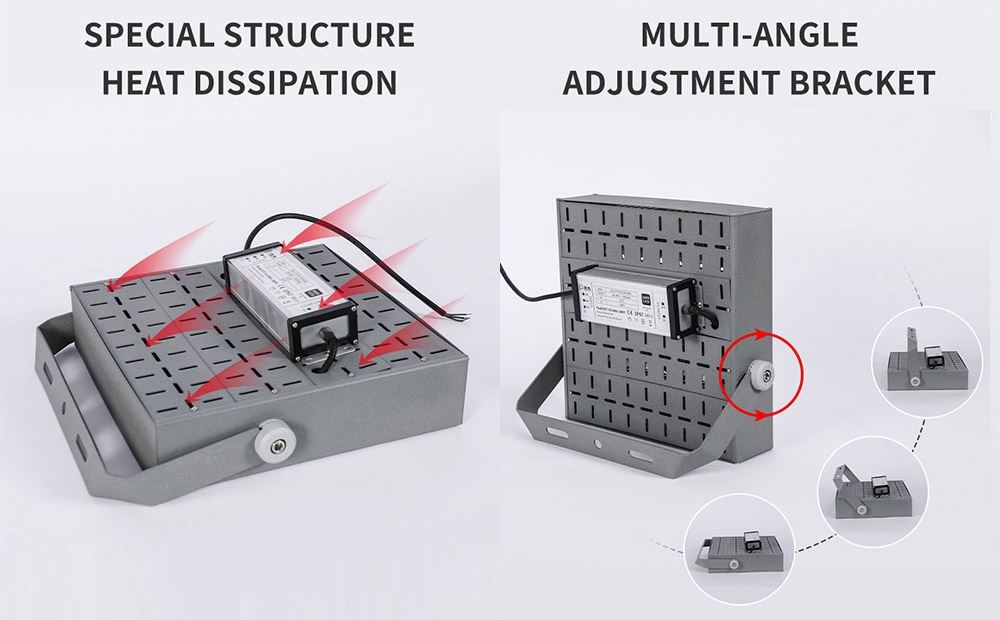

integrated molding die-casting process, large heat dissipation area, hidden air duct, internal and external permeability. form 3d three-dimensional heat dissipation with upper and lower air ducts of heat sink. | the bracket can be adjusted at any angle and rotated flexibly to meet the needs of different scenes' light demand, increase the lighting angle and lighting range. |
LED Flood Light PRODUCT PARAMETERS
product parameter at a glance
Item | Details | Item | Details |
Name: | Module floodlight | Light source: | LUMILEDS 3030SMD |
Waterproof class: | IP66 | Color rendering: | > 70 |
Light beam Angle: | 70*140/90/45/30 | Input voltage: | 90-260V |
Color temperature: | 3000K/4000K/6000K | Working environment: | -40°C~90°C |
Surge protection: | 6KV/10KV | Material: | Stretched aluminum profile |
Driver: | Inventronics/ Maso/ Songsheng Sosen | ||
Application: | Square stadium/Tunnel bridge/engineering lighting | ||
Model number | power | dimension | Luminous flux | Package size | weight |
Qm-50 | 50W | L80W370H125MM | 5200lm | 365365140mm | 1.4KG |
Qm-100 | 100W | L160W370H125MM | 1100lm | 365365140mm | 2.8KG |
Qm-150 | 150W | L240W370H125MM | 16000lm | 365365140mm | 4KG |
Qm-200 | 200W | L325W370H125MM | 21000lm | 540365140mm | 5.4KG |
Qm-250 | 250W | L400W370H125MM | 25500lm | 540365140mm | 7KG |
Qm-300 | 300W | L480W370H125MM | 28000lm | 540365140mm | 8.5KG |

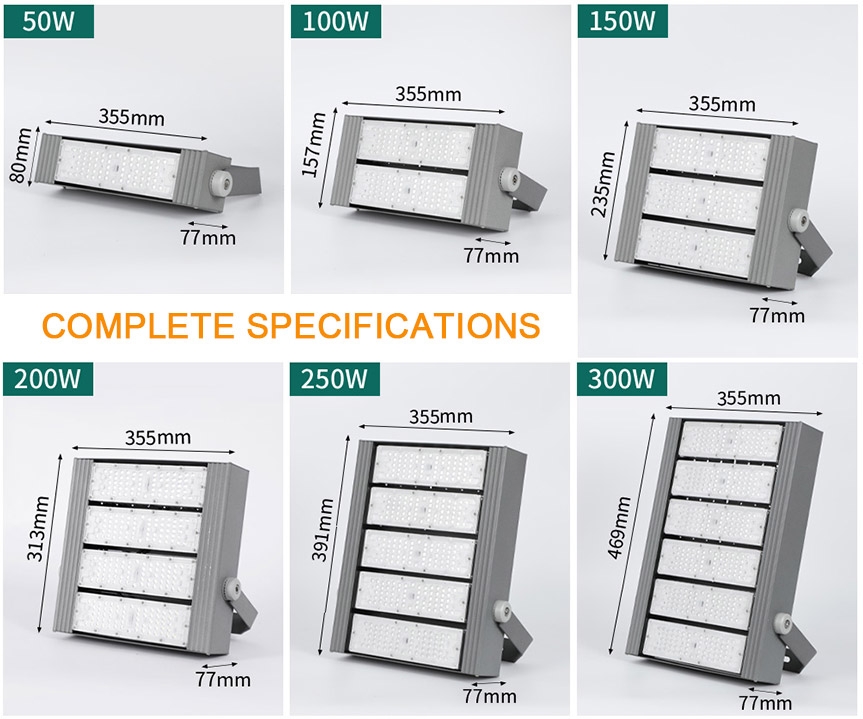

LED Flood Light COMPLETE SPECIFICATIONS

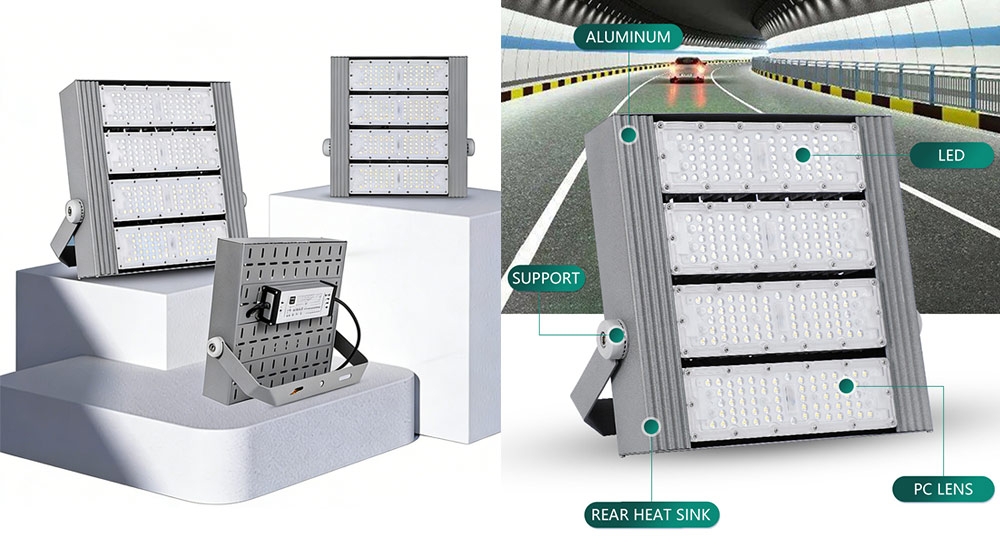

HIGH QUALITY DETAILS
| HIGH TRANSMITTANCE PC MASK, LIGHT EFFICIENCY LOSSLOW, TRANSMITTANCE GREATERTHAN 90%, PC COVER IMPACT, EXPLOSION, PRESSURE AND HIGH TEMPERATURE RESISTANCE. |
ANGLE ADJUSTMENT ALL-ROUND ANGLE ADJUSTABLEFOR USE THE SITE IS NOT LIMITED, THE INSTALLATION IS CONVENIENT,ALL IN ONE GO. |
|
| SAFETY POWER SUPPLY BACKPLANE VENTILATION DESIGN,BUILTIN SAFETY POWER SUPPLY,SAFER, MORE PRACTICAL AND BEAUTIFUL SEE WE ALL HAVE TO HAVE. |
HEAT DISSIPATION THE BACK ADOPTS THE DESIGNOF HEAT DISSIPATION HOLE,INTEGRATED HEAT DISSIPATION,SAFE AND EFFICIENT, WORKINGPROCESS PREFERRED. |
|
LED Flood Light Applications in Sports Stadiums
| COURT LIGHTING |
| SQUARE LIGHTING Enhance public safety with this wide-beam outdoor flood light designed for expansive plazas. Featuring an IP66 waterproof rating, our area flood light replaces 1000W metal halides to provide 24/7 brightness. It’s a durable, low-maintenance commercial flood light solution for high-traffic public spaces. |
| ENGINEERING LIGHTING |
| TUNNEL LIGHTING |
Contact us directly for pricing and project support. Fast response, factory-direct supply, and customized lighting solutions available. Email: mr.xu@yzldzm.com | Tel: +86 13815843784 | WhatsApp: +86 13815843784 |
FAQ
1. What is the difference between IP65 and IP66 waterproof ratings? A: Both are great for rain. IP65 can handle heavy rain and splashes, while IP66 can withstand powerful water jets (like a pressure washer). For most residential and commercial outdoor setups, an IP65 Outdoor LED Flood Light is more than enough to survive years of storms, snow, and humidity.
2. Why should I switch from Halogen to LED Flood Lights? A: Two words: Electricity Bills. A 50W LED produces the same amount of light as a 400W-500W old-school halogen bulb. You get the same brightness but use 80% less energy. Plus, LEDs don’t get dangerously hot like halogens, making them much safer for wooden structures or near trees.
3. Where is the best place to mount an Outdoor LED Flood Light? A: For the best "flood" effect, mount the light at least 8 to 12 feet high. Angling it slightly downward (about 45 degrees) prevents the light from shining into your neighbors' windows while maximizing the coverage area on your own property.
4. Is "Cool White" or "Warm White" better for the outdoors? A: For security and visibility, Cool White (5000K-6000K) is the gold standard because it looks like daylight and makes colors pop at night. If you are lighting up a garden or a patio for a relaxing vibe, Warm White (3000K) creates a softer, more inviting glow.
5. What should I do if my flood light starts flickering? A: Flickering usually means there is a loose connection or your voltage is fluctuating. Our Outdoor LED Flood Lights use high-quality "constant current drivers" to prevent this. Ensure your wires are tightly capped and that the light is on a dedicated circuit if you have many high-power appliances running at once.
6. How long do these lights really last? A: You can expect about 50,000 hours of life. If you use your Outdoor LED Flood Light for 10 hours every single night, it will last you over 13 years. Unlike old bulbs, there is no "filament" to break, so they are incredibly vibration-resistant and durable.
7. What happens if the glass on the flood light gets hit by a ball or debris? A: We use high-impact tempered glass for all our Outdoor LED Flood Lights. This isn't your typical window glass—it’s designed to be incredibly tough. Whether it’s a stray football from the kids or wind-blown debris during a storm, the face of the light is built to take a hit without shattering, keeping the internal LEDs protected and dry. |
Our structural designs are based on local wind data. Standard designs withstand winds up to 160km/h (45m/s), with reinforced options for hurricane-prone regions.
It depends on the mounting height and required lux levels. Generally, for a 25-30m pole, high-power LED floodlights ranging from 400W to 1000W are recommended.

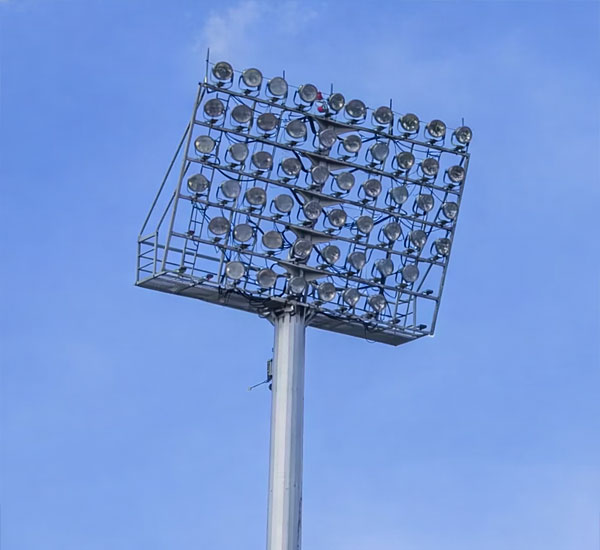

High mast light refers to poles typically 20m (65ft) or taller. It is widely used in airports, seaports, highways, stadiums, and logistics hubs to provide uniform illumination over a vast area.
Q345B has higher yield strength, allowing taller, slimmer poles to remain safe while reducing weight and improving wind performance.
High mast poles are designed for large-area outdoor lighting, and their height usually depends on the size of the space that needs to be illuminated.
We use high-strength carbon steel such as Q235B or Q345B, bent into polygonal shapes (usually 12 or 16 sides) and hot-dip galvanized both internally and externally.
Raising & Lowering systems feature an electric winch to lower the light ring to ground level for maintenance. Fixed systems require a bucket truck or ladders for servicing.
It consists of an electric winch, stainless steel wire ropes, pulleys, and an automatic latching mechanism. Once reaching the top, the ring locks mechanically to relieve tension from the ropes.
No. Our systems feature an automatic mechanical latching system and safety brakes to ensure the ring stays secure even without rope tension when in the locked position.
Yes. Each pole is equipped with a lightning rod at the top and dedicated grounding bolts to connect to the foundation grounding system.
We use professional asymmetrical optical lenses (such as Type IV or Type V) to ensure uniformity over large areas and minimize glare.
Through shields and precise light distribution design, we confine excess light to the target area, reducing interference for the surrounding environment and drivers.
A concrete foundation must be poured based on pole height and soil conditions. We provide detailed foundation drawings and anchor bolt cages.
In standard outdoor environments, hot-dip galvanizing provides rust protection for over 25-30 years without requiring additional painting.
Yes. Due to height limits, poles over 20m are typically split into 2-3 telescopic sections for convenient shipping in 40ft containers.
No. Sections are joined via overlap (telescopic fit) using gravity or hydraulic force. This mechanical joint is more flexible and fatigue-resistant than welding.
Yes. Our professional lighting design team provides free Dialux simulation reports based on your site’s CAD drawings to optimize lighting layouts.
Yes, we have extensive project references in the Middle East, Southeast Asia, and South Africa. We can provide photos and technical parameters upon request.
We typically offer a 10-year warranty on the pole structure and a 5-year warranty on the LED fixtures and lifting systems.
Yes. Our light rings can be customized with brackets to accommodate CCTV cameras or other security sensing devices.
EPA refers to the Effective Projected Area of the pole and fixtures under wind pressure. It is a critical parameter for calculating structural safety.
Technically yes, but due to high power consumption, very large solar arrays and battery banks are required. We typically recommend grid-tied or hybrid systems.
We use high-quality stainless steel or plastic-coated wire ropes and recommend regular greasing during annual inspections.
Yes. With intelligent control systems, you can remotely adjust brightness and scheduling to maximize energy savings.
We perform Non-Destructive Testing (NDT), such as ultrasonic testing, to ensure all critical load-bearing welds are free of cracks or porosity.
