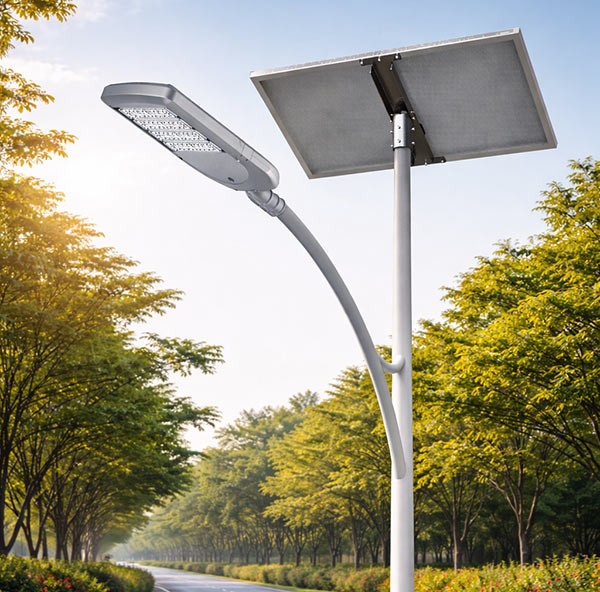

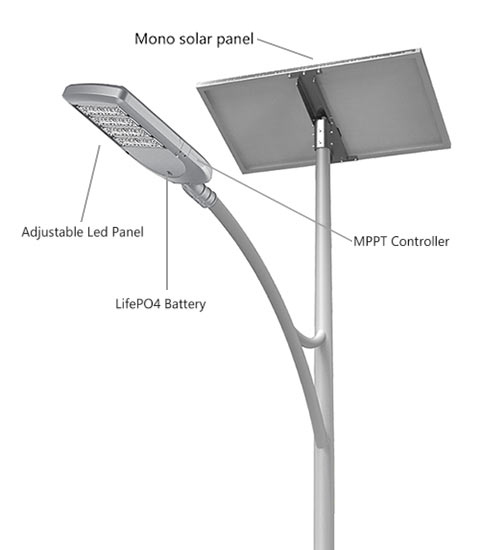

What Is a Split Solar Street Light?A split solar street light is a solar-powered lighting system where the solar panel, battery, and LED lamp are installed separately. This design allows more flexibility in installation and better performance compared to integrated solar street lights.Split solar street lights are widely used for off-grid outdoor lighting projects where electricity supply is limited or unavailable. They provide an independent lighting solution powered by solar energy, reducing installation cost and long-term electricity expenses. Our split solar street light systems are designed for roads, rural areas, parking lots, and remote infrastructure projects, offering stable performance, high energy efficiency, and flexible installation options. |
|
Solar Street Light Product Components

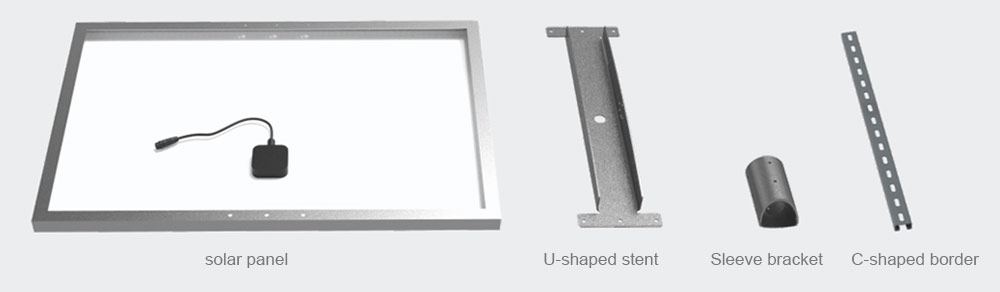

Solar panel components:

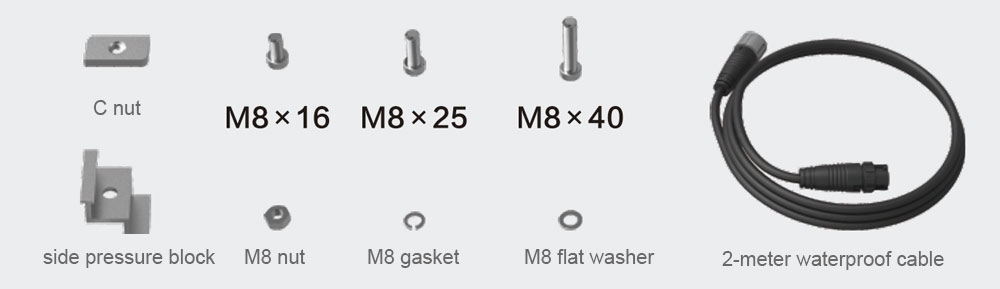

fittingsofamachine：
Solar Street Light Parts List
Before installation,verify that all components are complete. The components and quantities in each set are listed below:
The solar panel component list includes:
Name | 50W (Qty) | 80W (Qty) | 110W (Qty) | 130W/180W (Qty) |
Solar panel | 1 | 1 | 1 | 1 |
U-shaped stent | 1 | 1 | 1 | 1 |
Sleeve bracket | 1 | 1 | 1 | 1 |
2-meter waterproof cable | 1 | 1 | 1 | 1 |
M8 × 40 | 4 | |||
M8 × 25 | 4 | 4 | 4 | 10 |
M8 × 16 | 14 | 14 | 14 | 8 |
M8 flat washer | 10 | 10 | 10 | 14 |
M8 gasket | 10 | 10 | 10 | 14 |
M8 nut | 6 | 6 | 6 | |
Self-tapping screw | 4 | 6 | 8 | 6 |
C-shaped border | 2 |
Lamp accessories include:
Name | UP15/UP20 | UP30/UP40 | UP50/UP60 |
quantity | |||
M8×16 | 6 | 6 | 6 |

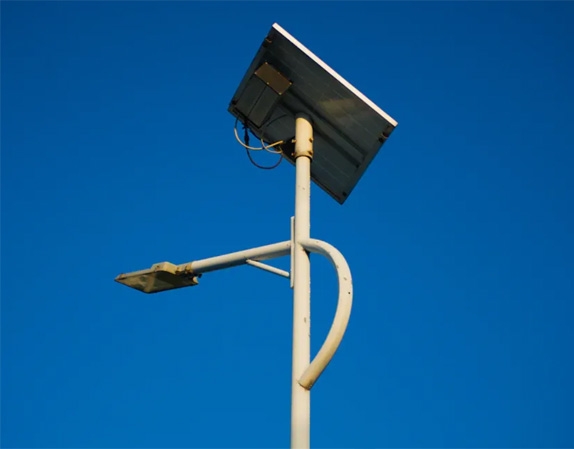

Why Choose Split Solar Street Lights Over Integrated Systems?Split solar street lights offer several advantages: - Larger solar panels for higher energy efficiency - Bigger battery capacity for longer lighting time - Flexible installation angles for better sunlight absorption - Longer lifespan and easier maintenance Compared to integrated systems, split designs are more suitable for professional and large-scale projects. |
|
Solar Street Light Matters Need Attention
Please read the following precautions carefully before using the Jieyao series solar street lights to avoid personal injury or product failure caused by improper use.
Electric Shock Warning
・ Preventing Electric Shock: To avoid the risk of electric shock, the installation of street lights equipped with AC adapters must be performed by professional personnel with valid street light construction qualifications.
・ Custom Product Confirmation: Street lights with AC adapters are customized products. Before installation, please confirm that the AC adapter complies with local municipal power standards.
・ Installation Safety: During the installation process, ensure that the municipal power supply is completely disconnected and that proper waterproof and insulation protection measures are in place.
Working Conditions
・ Protection Rating: This product has an IP65 protection rating.
・ Wind Resistance: The high-strength structural design can withstand Category 3 typhoons (58m/s); exceeding this intensity may cause damage to the street light.
・ Operating Temperature: The standard operating temperature range is -20°C to 60°C (charging is limited to 0°C to 60°C). Products equipped with a heating function can be used in environments ranging from -40°C to 60°C.
Transportation and Storage
・ Battery Safety: This product contains high-capacity lithium battery components. Please follow aviation transportation regulations and standards during transport.
・ Storage Hazard: Store as a flammable and explosive item, and keep it isolated from other goods.
・ Fragile Handling: The solar panels in this product are fragile. Stacking is limited to a maximum of two layers. Do not exceed this limit or place heavy objects on top.
・ Storage Environment: Please store the product in an environment between 0°C and 45°C.
・ Long-term Storage: If stored for a long period, the product must be charged every 6 months. Use a dedicated charger (sold separately) to avoid damaging the battery or equipment.
Product Maintenance
・ To ensure the solar panel can effectively receive sunlight during use, please regularly clean the surface of the solar panel with a soft cloth and clean water. Do not use chemical agents with strong dissolving properties such as ammonia or benzene, nor abrasive cleaners.
・ The light source and other electronic components of this lighting equipment may only be replaced by the manufacturer, its authorized service agents, or similarly qualified personnel. Unauthorized replacement or the use of third-party parts is prohibited, as this may cause serious damage to the product. If the user disassembles the product without authorization, the warranty will be void.
・ If you need to order replacement parts or accessories, please visit our official website: www.jieyaolighting.com
Product Recycling
・ This product is made from high-performance recyclable materials and components. Do not dispose of this product together with household waste.
・ Please familiarize yourself with local regulations on the separate collection of electrical and electronic equipment. Proper disposal of old products helps prevent potential negative impacts on the environment and human health.

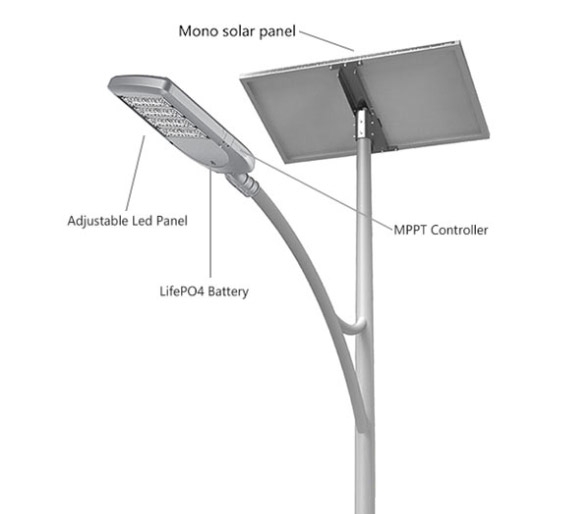

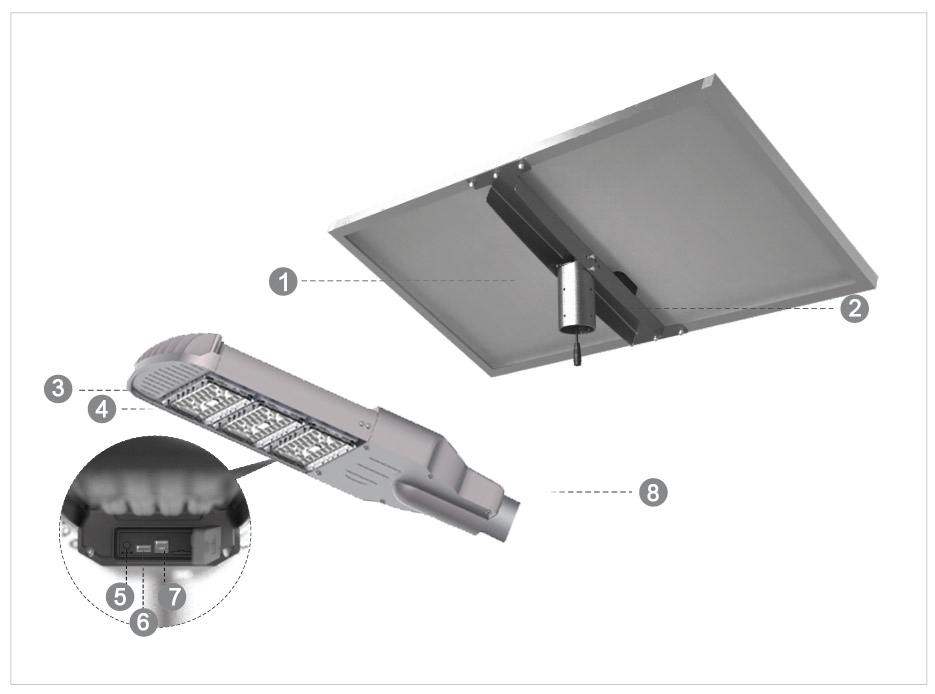

Solar Street Light Functional Description
No | Name | Function Description |
1 | Solar Panel | Absorbs solar energy, converts it into electrical energy, and controls the light ON/OFF via a light sensor. |
2 | Solar Panel Bracket | Used to fix and support the solar power generation system. |
3 | PIR Motion Sensor | Automatically adjusts brightness through human motion detection. |
4 | LED Lamp | Provides illumination. |
5 | LED Street Light ON/OFF Button | Turns the LED street light on or off at night. |
6 | USB Type-A Charging Port | Used for battery charging (with 14V, 1.5A dedicated charger). |
7 | USB Type-B Port | Dedicated port for program flashing. |
8 | Street Light Bracket | Used to fix and support the LED street light. |
User Instructions

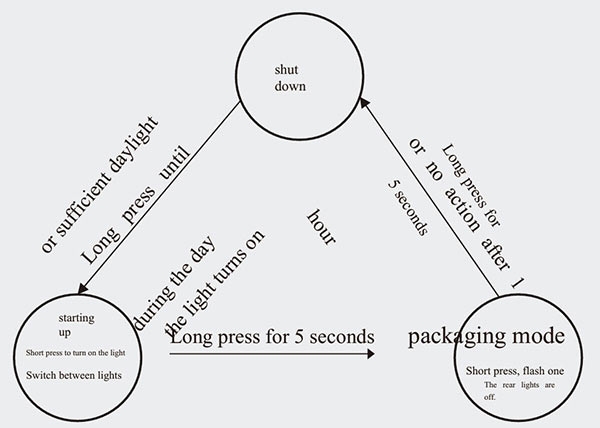

1. Operating Mode Definitions
・ Power-Off Mode: The system does not operate; neither charging nor discharging is performed.
・ Shipping Mode: The system will automatically power off within 1 hour and enter Power-Off Mode.
・ Power-On Mode: The system operates normally. It automatically charges during the daytime and automatically discharges at night.
2. Power On
・ Daytime Power-On
When there is sufficient daylight (>30 lx), connect the product to the solar panel.
The light will turn on for about 20 seconds and then turn off.
This indicates that the product has been successfully powered on and entered Power-On Mode.
If the daylight level is insufficient, please use the nighttime power-on method.
・ Nighttime Power-On
Press and hold the button for 5 seconds until the light turns on.
Release the button and the light will turn off, indicating that the system has entered Power-On Mode.
After the light turns off, if the ambient light level meets the lighting condition (<30 lx),
the light will turn on automatically; otherwise, it will remain off.

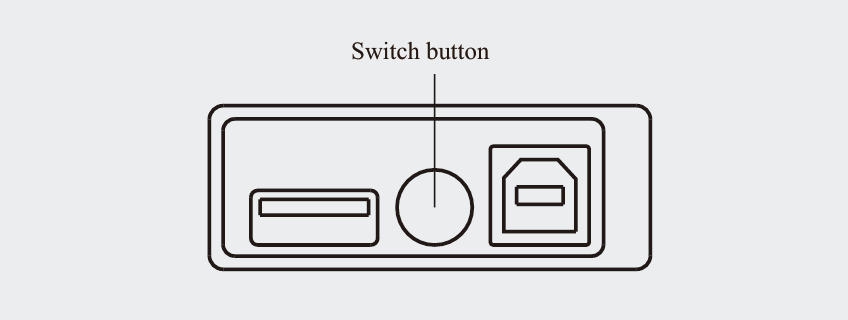

3. Button Operation
Press the button briefly (1 second) to check the current operating mode of the product:
・ Power-Off Mode: Press the button briefly. If the light status does not change, the product is in Power-Off Mode.
・ Shipping Mode: Press the button briefly. If the light flashes once and then turns off, the product is in Shipping Mode.
・ Power-On Mode: Press the button briefly. If the light switches directly between ON and OFF, the product is in Power-On Mode. In this mode, you can turn the light ON or OFF by pressing the button briefly.
Press and hold the button (5s) to switch product modes:
・ Power-off mode: When the solar panel is connected and receiving normal sunlight, the product will automatically turn on; or, press and hold the button for 5 seconds, the light will turn on and then off, and the product will enter power-on mode.
・ Power-on mode: Press and hold the button for 5 seconds, the light will flash 3 times and then turn off, and the product will enter packing/transport mode; if the solar panel is disconnected, the product will immediately enter power-off mode.
・ Packing/transport mode: Press and hold the button for 5 seconds, the light will flash once and then turn off, and the product will enter power-off mode; or, if no operation occurs within 1 hour, the product will automatically enter power-off mode.
4. The solar panel module for the PLUS series solar street lights is optional. You can use your own existing solar panels, or choose our standard solar panel modules with mounting kits.
5. The solar panel output voltage is 18 VDC, with a power range of 50 Wp–180 Wp. Exceeding this range may affect operational efficiency.
6. If you choose to use your own solar panel, simply connect the output wires from the solar panel to the solar panel input wires of the PLUS series solar street light, and it will work.

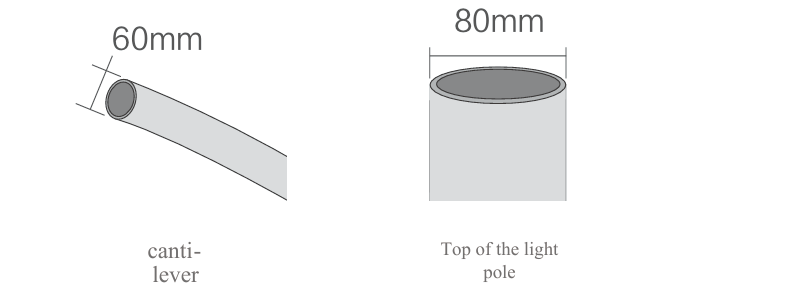

7.For the PLUS series solar street lights, a cantilever pole is recommended.
The diameter of the pole at the top where the solar panel bracket is installed should not exceed 80 mm,
and the cantilever should not exceed 60 mm.
8. This product is factory-configured to operate via the solar panel light sensor (light control threshold: 30 lx),
meaning it automatically turns on at dusk and off at dawn.

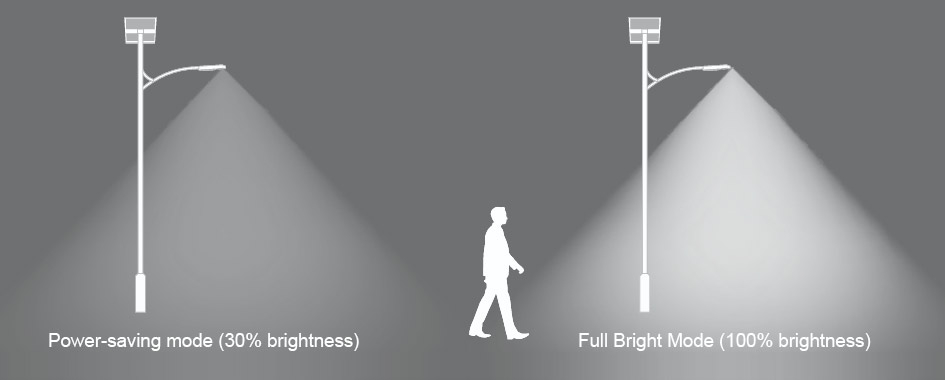

At night, when no one is nearby, the street light operates in power-saving mode.
When someone approaches, the street light switches to full brightness.
Solar Street Light Product Installation
1. Installation Environment

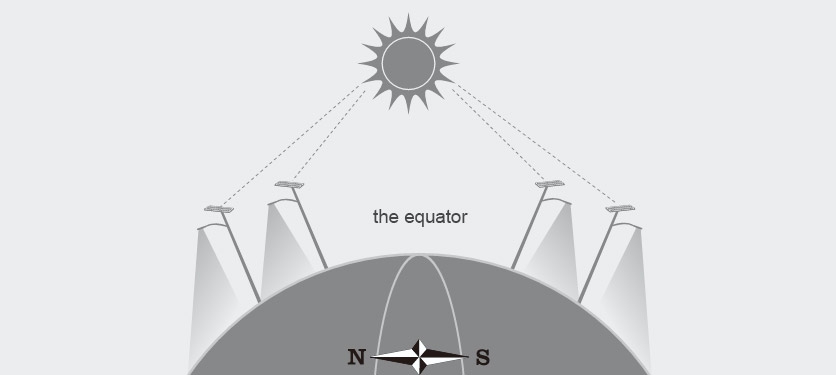

① Please select the appropriate product model based on the local sunlight intensity and the required operating hours.
For installations in the Northern Hemisphere, orient the solar panel as much as possible toward the south;
for installations in the Southern Hemisphere, orient the solar panel toward the north.

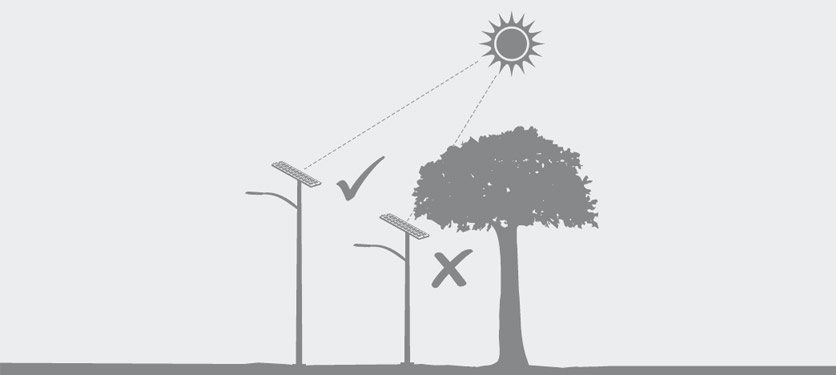

② During installation, make sure the solar panel is not shaded by buildings or trees,
as this may reduce the power generation efficiency of the solar system and affect the operation of the street light.
If you choose the LEADSUN solar panel module and mounting kit,
please follow the installation method below. If you use your own solar panel module,
you may refer to this method as well.
2. Installation of the Solar Panel Mounting Kit

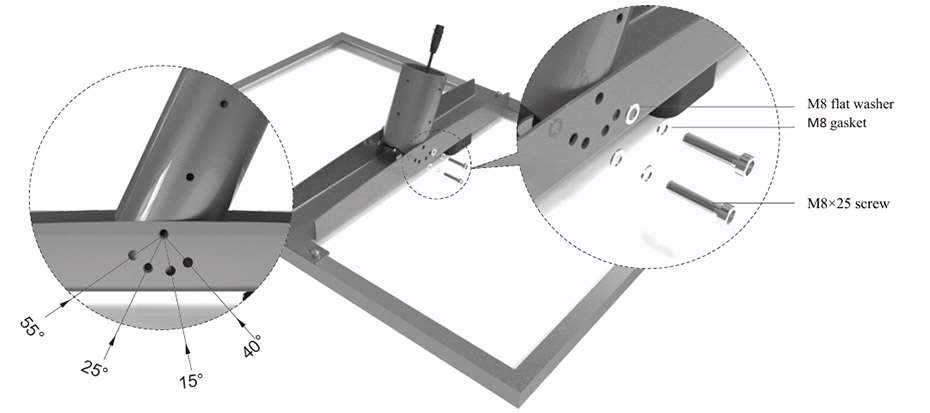

Installation of 50–110W Mounting Kit
First, fix the U-shaped bracket to the frame of the solar panel as shown in Figure 1.
The required hardware includes M8×16 bolts, M8 nuts, M8 flat washers, and M8 spring washers.
Select an appropriate angle to fix the sleeve bracket.
The required hardware includes M8×25 bolts, M8 spring washers, and M8 flat washers.

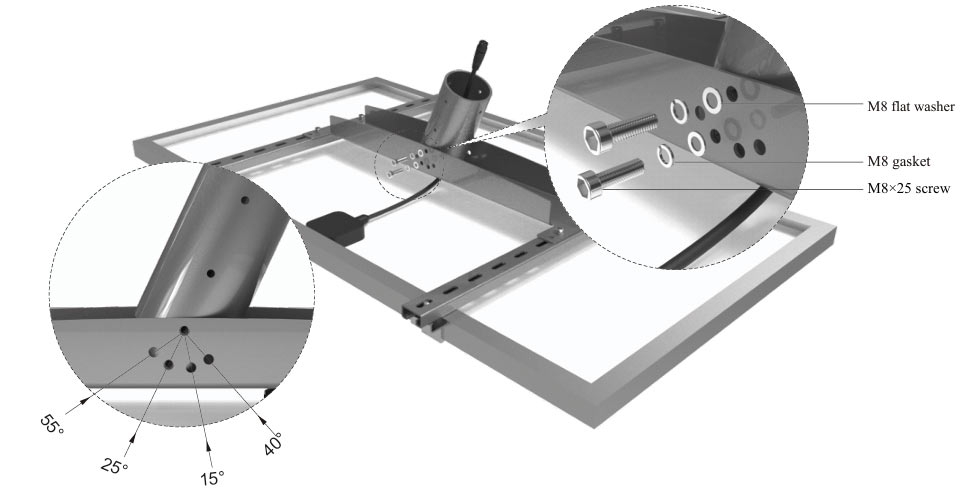

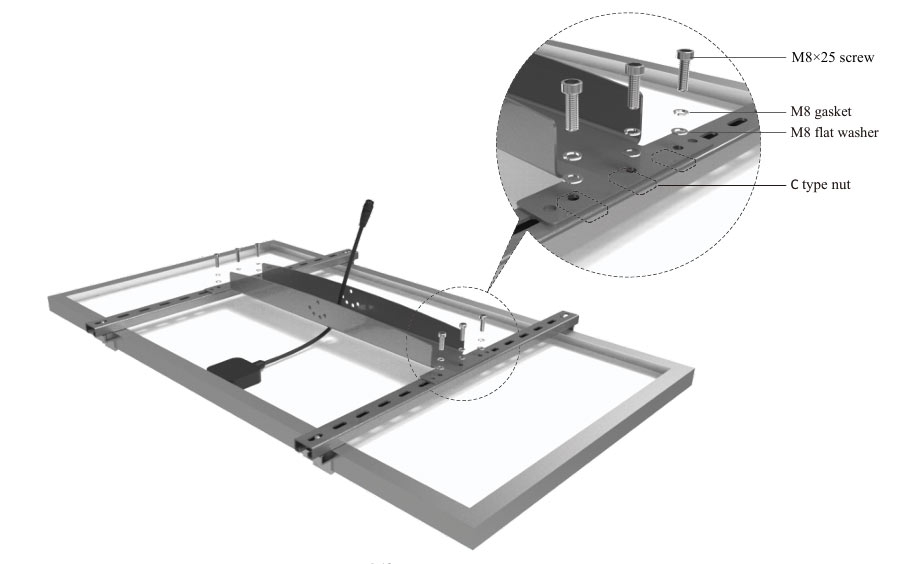

Installation of 130–180W Mounting Kit

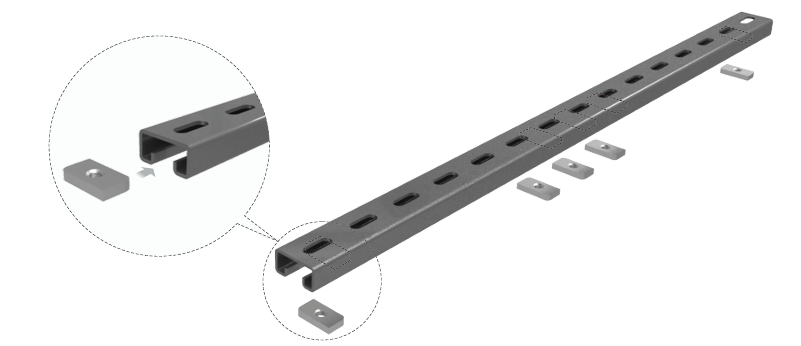

① insert 5 pcs of C-type nuts into the crossbar.

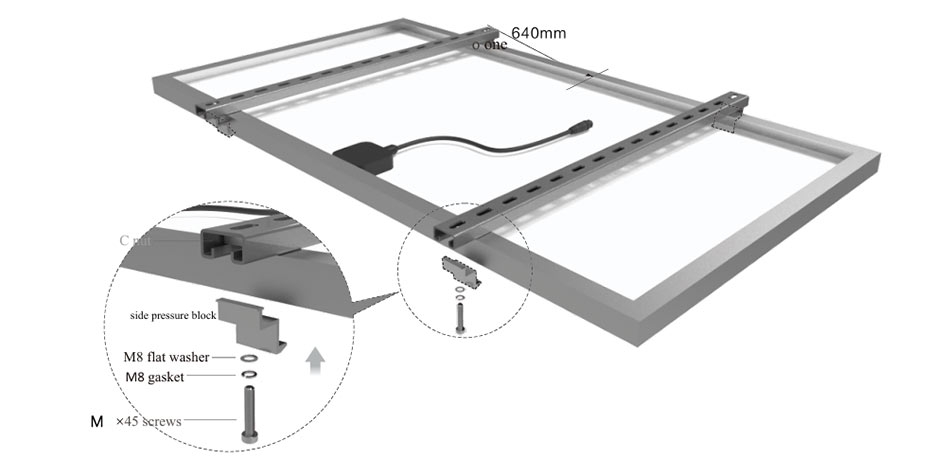

② Use 4 pcs of edge clamps, M8×40 bolts, M8 spring washers, M8 flat washers,
and C-type nuts for the edge clamps to secure the two crossbars to the solar panel frame.
Adjust the center distance between the two crossbars to 640 mm and center the solar panel.
③ Use M8×25 bolts, M8 spring washers, M8 flat washers,
and C-type nuts to fix the U-shaped bracket onto the crossbar.
④ Select the appropriate angle for the fixed sleeve bracket,
using M8×25 screws, M8 spring washers, and M8 flat washers. As shown in Figure.

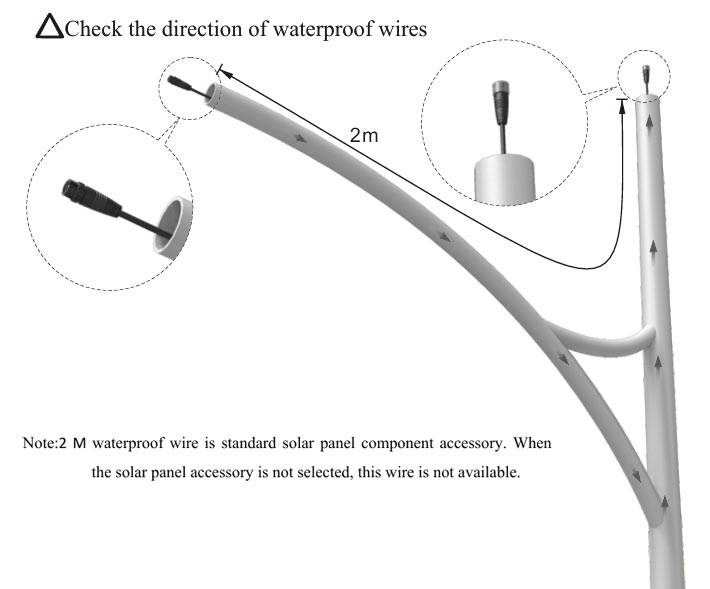

4. Cable Routing Through the Pole Arm
Thread the waterproof cable through the pole arm and lead it out from the top of the pole.

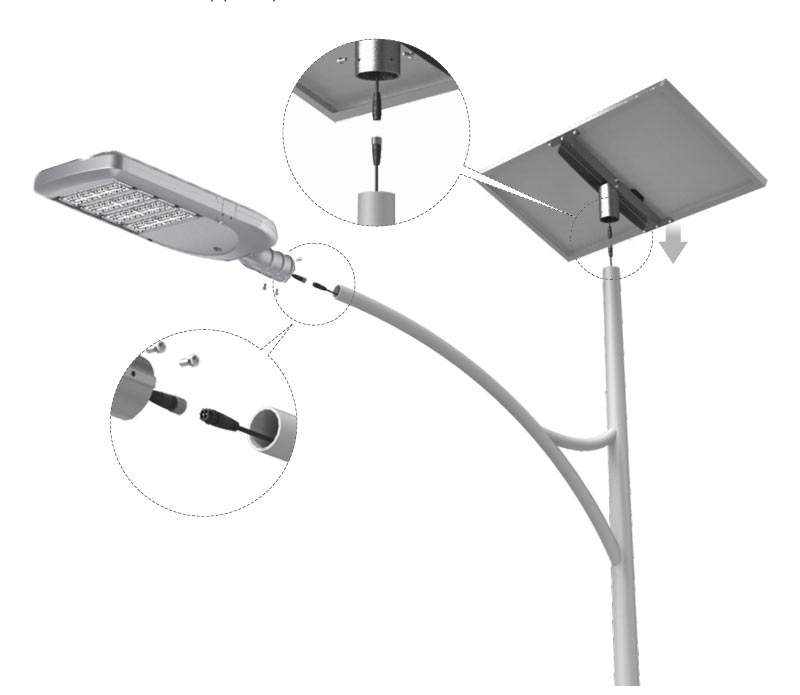

5. Install the Solar System
Connect the solar system to the waterproof cable inside the pole and tighten the connectors in sequence.
Then insert the pole into the X-bracket and secure it with M8×16 mm bolts using a special tool
(if using an electric wrench, set the torque to 14 N·m).
6. Install the LED Street Light

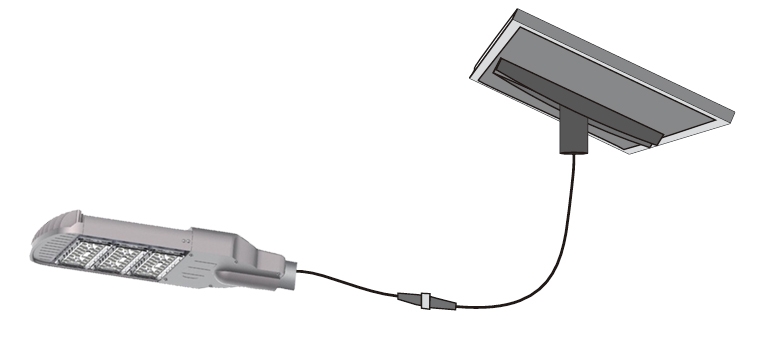

Connect the waterproof cable from the pole arm to the LED street light cable and tighten the connectors in sequence.
insert the LED street light bracket onto the pole arm and secure it with M8×16 bolts,
ensuring the LED street light is firmly mounted on the pole.
Installation is complete. (If using an electric wrench, set the torque to 14 N·m.)
Solar Street Light Troubleshooting Guide
No. | Malfunction | Inspection Steps | Solution |
1 | Light does not turn on at night | Check if the luminaire can be activated normally. | Test according to the "Activation Test" method in the "Activation and Installation" chapter of this manual. |
Check if the solar panel is blocked by houses or trees during the day, affecting sunlight exposure. | Remove obstructions or change the installation location of the luminaire. | ||
Check if the solar panel is illuminated by artificial light sources at night. | Remove the interfering artificial light source or change the installation location of the luminaire. | ||
2 | Lighting time at night is severely insufficient | Check if the solar panel is blocked by houses or trees during the day, affecting sunlight exposure. | Remove obstructions or change the installation location of the luminaire. |
Check if there is dust or covering on the surface of the solar panel, affecting sunlight exposure. | Clean the surface of the solar panel. | ||
3 | Abnormal motion sensor function | Check if the working environment temperature of the luminaire is close to human body temperature. | When the ambient temperature is close to the human body temperature, the sensitivity of the infrared sensor will decrease; it will return to normal after the ambient temperature drops. |
Check if the installation height of the luminaire is too high. | When the installation height exceeds 8 meters, the sensitivity of the motion sensor will decrease. It is recommended to lower the height or use other working modes. | ||
Replace the damaged infrared sensor or controller. |
Ready to Optimize Your Project Lighting?
Don’t leave your facility’s safety and efficiency to chance. Whether you need a high-performance replacement or a complete, custom-engineered lighting layout, our team is ready to provide the technical expertise and competitive pricing you deserve. Contact us today to secure your project's success.
Get Your Free Technical Consultation
Split Solar Street Light FAQ
1. Is Split Solar Street Light better than all-in-one solar street light? It depends on the project. Split type is better when: The installation area has limited sunlight angle Higher brightness is required Long lighting hours are needed All-in-one is more compact, but split type usually performs better in real outdoor projects.
2. How long does a Split Solar Street Light work at night? Most quality Split Solar Street Lights can work 10–14 hours per night, depending on: Battery capacity Solar panel size Local sunlight conditions A good system can even support 2–3 rainy days backup.
3. Can Split Solar Street Light work on cloudy or rainy days? Yes. It stores energy in the battery during sunny days. Even in cloudy or rainy weather, it can still work normally for a limited number of days. However, long-term performance depends on: Battery quality Proper solar panel sizing
4. Where is Split Solar Street Light usually used? Split Solar Street Light is widely used in areas such as: Rural roads and highways Parking lots Industrial zones Parks and public pathways Remote or off-grid areas It is especially useful where grid electricity is not stable or too expensive.
5. How to choose the right wattage for Split Solar Street Light? Wattage depends on road width and lighting needs: 20W–40W → small paths, residential areas 60W–100W → standard roads and parking lots 120W+ → highways or large open areas Choosing the right system is more important than simply choosing higher wattage.
6. What is the lifespan of Split Solar Street Light? A good quality system usually lasts: LED light source: 50,000+ hours Lithium battery: 3–5 years Solar panel: 20–25 years Maintenance mainly focuses on battery replacement after several years.
7. Is Split Solar Street Light easy to install? Yes, it is relatively easy because: No trenching for cables No connection to power grid Only pole installation and component fixing Installation time is much shorter compared to traditional street lights. |
LED Fixture: >50,000 hours; Solar Panel: 25 years; Lithium Battery: 5-8 years; Controller: 5-10 years.
We offer a 3-5 year full-system warranty. If a quality issue arises, we will ship free replacement parts immediately after verification.
Yes. We provide specialized batteries for extreme climates, including heating films for cold regions and heat-resistant lithium cells for tropical environments.
To give you a straight answer: Yes, the upfront cost of a Solar LED Street Light is higher than a traditional AC LED light. However, if you look at the "Total Cost of Ownership," solar often wins by a landslide.
We use reinforced cartons and wooden pallets to prevent damage during long-distance transit. For large projects, we recommend FCL (Full Container Load) sea freight to minimize shipping costs.
Our solar street lights carry CE, RoHS, IP66, IK10, and ISO 9001 certifications, meeting the standards for government and commercial projects worldwide.
Yes. We can customize power output, battery capacity, logo branding, and even industrial design based on your project requirements.
In dusty or low-rainfall areas, we recommend cleaning every 6 months. Heavy dust accumulation can reduce charging efficiency by over 20%.
This is usually due to battery aging, panels being shaded causing insufficient charge, or incorrect controller settings. We can assist you with remote troubleshooting.
No. It is a self-contained power system that requires no trenching, wiring, or grid connection, significantly reducing installation and labor costs.
The optimal angle depends on your local latitude. Generally, panels should face the equator (South in the Northern Hemisphere) at an angle equal to your latitude plus $5^{\circ}$ to $15^{\circ}$.
We primarily use LiFePO4 (Lithium Iron Phosphate) batteries. Compared to Gel or Lead-acid batteries, LiFePO4 offers a much longer cycle life (over 2000 cycles) and superior high-temperature resistance.
Monocrystalline panels offer higher efficiency (above 20%) and perform better in low light, making them ideal for all-in-one designs. Polycrystalline panels are more budget-friendly for large-scale projects.
Yes. Our systems are engineered with "Autonomy Days," typically supporting 3-5 consecutive days of illumination even in complete absence of direct sunlight.
Our products are designed to illuminate for 10-12 hours per night. With intelligent controllers, we can customize lighting modes, such as full power for the first 4 hours and energy-saving mode thereafter.
