An integrated 60W solar street light for rural roads, communities and secondary access routes, with the panel, LiFePO4 battery, controller and LED optics packaged in one serviceable luminaire body.
An all-in-one solar street light combines the photovoltaic panel, LED source, battery and controller into a compact luminaire. It reduces external wiring and installation steps, making it suitable for community roads, rural routes, campuses, paths and small public areas.
The 60W label describes the luminaire class; it does not automatically mean the lamp can operate at 60W continuously from dusk to dawn. A professional configuration must match the actual LED load and dimming schedule to the available panel surface, battery capacity and local sunshine.

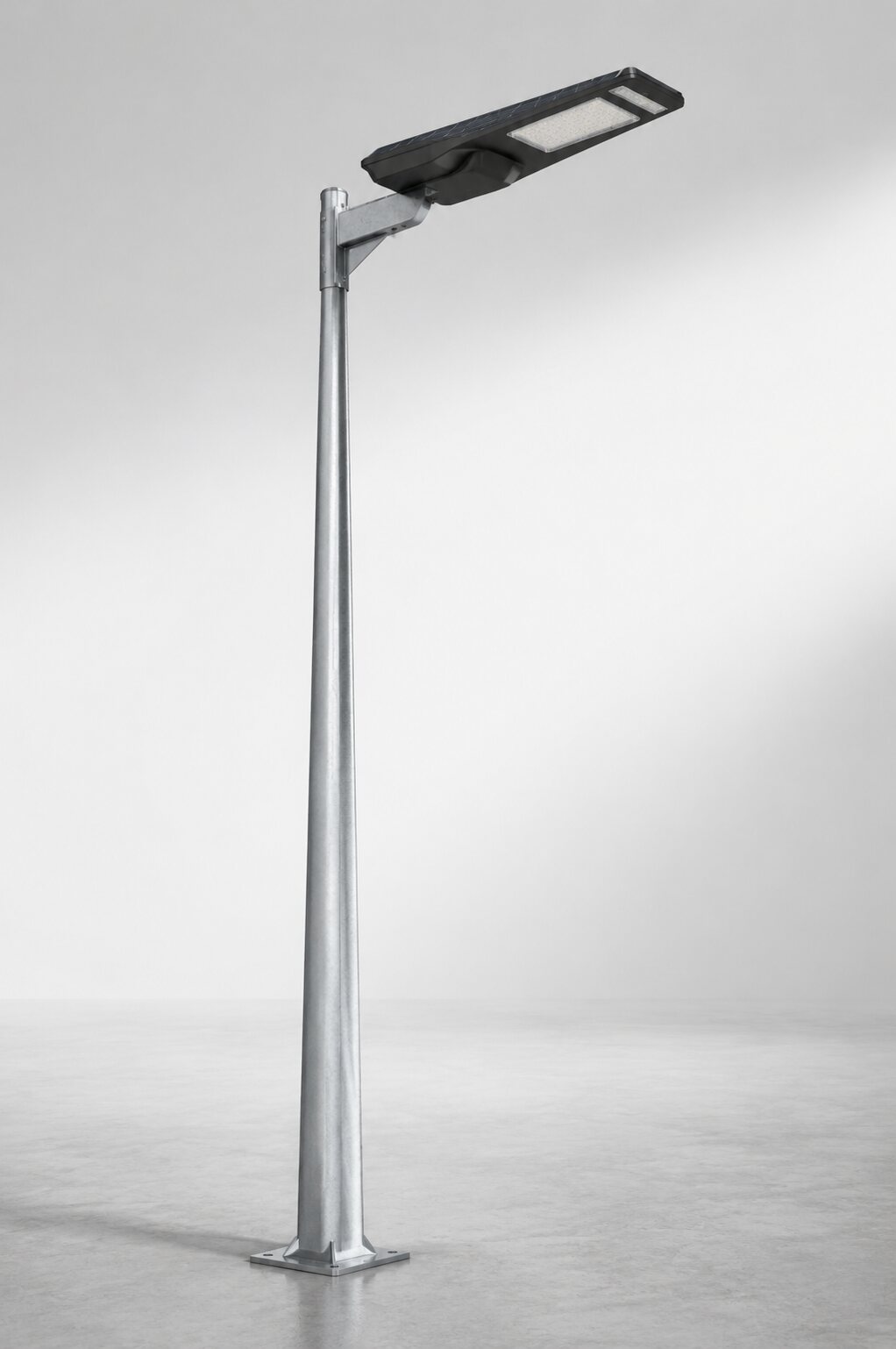

Original generic product visualization prepared for this page. Final dimensions and configuration follow the approved project design.
Efficient programmed lighting for village roads, agricultural access routes and secondary roads.
Comfort-oriented output and optional motion response for residential lanes and public spaces.
Clean integrated appearance for schools, parks, resorts and low-speed internal roads.
The integrated head minimizes separate solar-panel brackets, battery boxes and field wiring.
A compact luminaire is visually simpler than a split system and suits community or campus environments.
Timed dimming and optional sensing can allocate limited solar energy to the periods of highest activity.
| Item | Preliminary range / option | Project decision basis |
|---|---|---|
| Rated luminaire class | 60 W nominal product class | Confirm actual programmed output and LED model |
| Recommended height | 5–7 m preliminary range | Road width, optic, setback and spacing |
| Solar architecture | Integrated photovoltaic top surface | Local peak-sun-hours and shading |
| Battery | Integrated LiFePO4; model-specific | Nightly load, temperature and autonomy |
| Operating mode | Dusk-to-dawn; timed dimming | Traffic profile and required reserve |
| Sensor option | PIR or microwave, model-dependent | Road use and acceptable light-response pattern |
| Autonomy | 2–4 nights typical target | Climate, season and dimming strategy |
| Color temperature | 3000 K / 4000 K / 5000 K / 5700 K / 6500 K | Visual comfort and project standard |
| Pole finish | Hot-dip galvanized; coating optional | Corrosion category and appearance |
Confirm site, lighting, wind, operating and corrosion requirements.
Prepare the product configuration, loads, drawings and bill of materials.
Fabrication, welding, surface protection and component integration.
Dimensions, appearance, function, packing list and document checks.
An integrated housing has a finite solar collection area and battery volume. Oversized wattage claims without a stated operating profile can create unrealistic expectations. Jieyao therefore confirms the local solar resource, worst-season condition, lighting schedule and required backup nights before selecting the model.
For higher output, longer autonomy or heavily shaded locations, a split solar street light may be a more suitable architecture because the panel and battery can be enlarged independently.

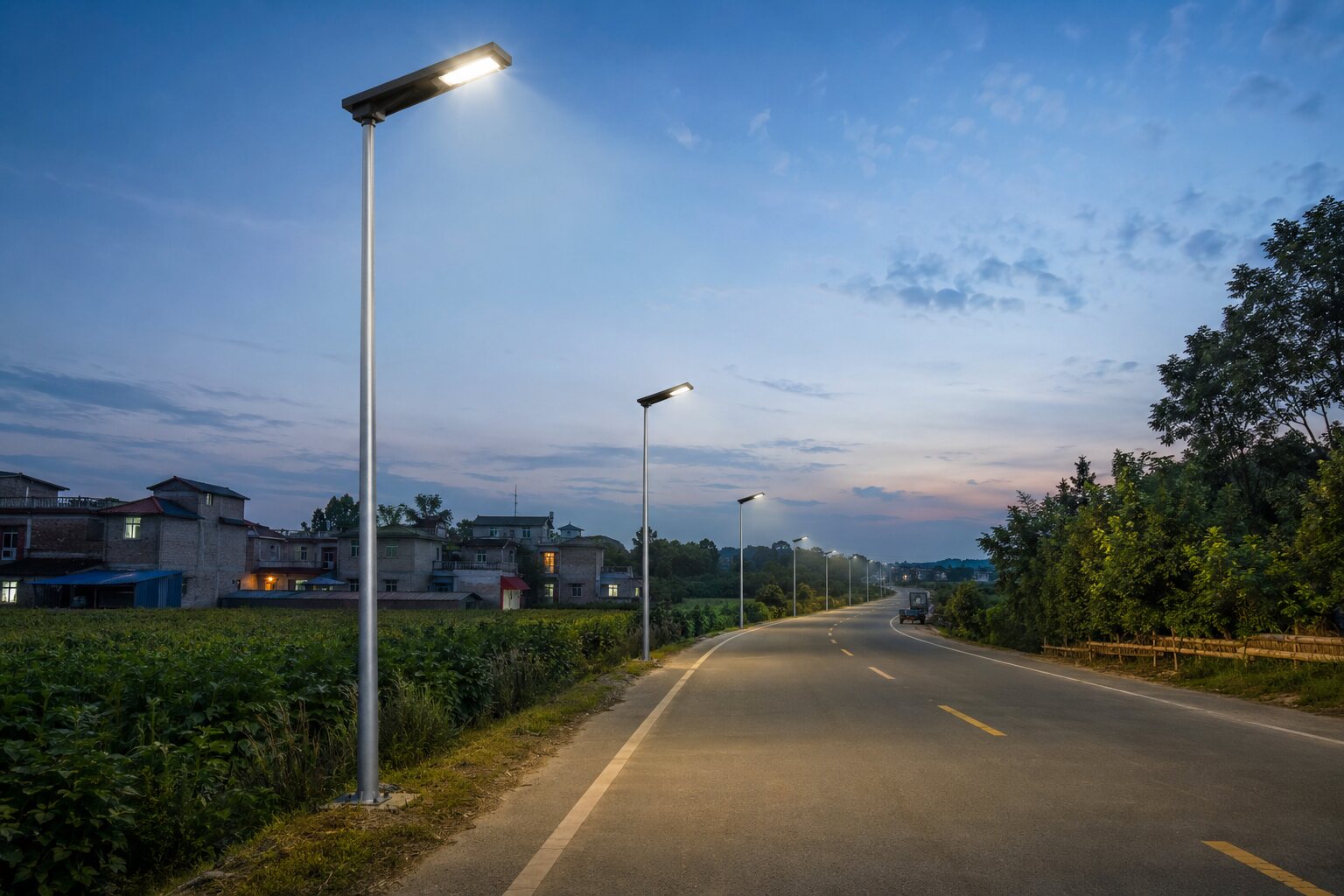

Illustrative rural-road application of integrated solar luminaires. It is a generated design reference, not a completed Jieyao project photograph.
Low- to medium-traffic roads where installation speed and energy independence are priorities.
Residential lanes, schools, parks and internal access roads requiring a clean appearance.
Farm tracks and service roads where underground cabling is not economical.
Not necessarily. The programmed power profile may use full output during high-traffic hours and lower output later. The quotation should state the actual schedule.
It may be, if the model is selected using local low-radiation data and the required autonomy. Difficult climates can require a larger integrated model or a split system.
Spacing depends on mounting height, road width, optic, required illuminance and surrounding obstructions. A photometric layout is preferred over a fixed spacing rule.
Serviceability depends on the selected housing. Jieyao can propose a model with replaceable LiFePO4 battery modules and accessible controller components.
Yes. 3000 K or 4000 K can be selected where visual comfort is prioritized, subject to the final luminaire configuration.
Luminaire model, programmed output, panel data, battery voltage and capacity, controller functions, pole, mounting hardware, packing, warranty scope and calculation assumptions.
Send the location, site dimensions, lighting target, operating schedule, wind speed and quantity. Jieyao will review the inputs and recommend a documented system.
