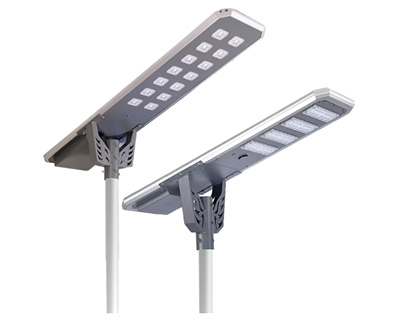

All in One Solar Street Light 30–40W Integrated Solar LED Road Lighting Manufacturer

short introduction：All in one solar street light 30–40W is one of the most widely used models for outdoor road lighting, combining solar panel, lithium battery, LED lamp, and controller into a single integrated unit.

Send Inquiry Now

Product details

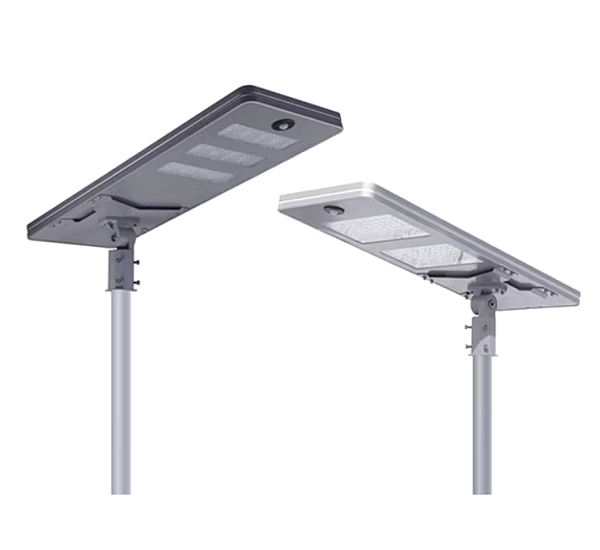

All in One Solar Street Light for Outdoor Lighting Projects

If you need a lighting solution that installs fast and works without complexity, the all in one solar street light is a practical option. With the panel, battery and LED integrated into one unit, it helps reduce installation time, avoid wiring issues and keep overall project costs under control. It’s widely used in roads, residential areas and small to medium projects where efficiency and reliability are key.

All in One Solar Street Light Specifications

Led Source	40W	50W	60W	80W	100W	120W
Mono Solar Panel	18V 60W	18V 70W	18V 80W	18V 100W	18V 130W	18V 140W
LifePO4 Battery	12.8V 18AH	12.8V 24AH	12.8V 30AH	12.8V 36AH	12.8V 48AH	12.8V 78AH
LED (Bridgelux)	3030/96PCS	3030/144PCS	3030/144PCS	3030/192PCS	3030/288PCS	3030/288PCS
Color Temperature	2700K-6500K , RA>70
Brightness	220LM/W
Working Time	12-15hours, 10-12 cloudy/ rainy days
Charging Time	6-8hours
Mounting Caliber	70-76mm ( suggestion )
Working Temperature	-25℃ - +65℃
Body Sensor	160° , >9m , Activated by customer's need
Battery Power Indicators	100%-75%-50%-25%
Fault indicator	RED/BLUE/GREEN
IP Rating/IK Class	IP66/IK09
Mounting Height	6-7m	6-8m	6-8m	8-9m	9-11m	10-12m
Space between 2 lamps	20-25m	20-25m	20-25m	25-30m	30-35m	35-40m
Warranty	3 years / 5 years

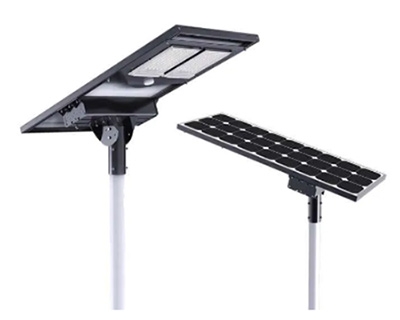

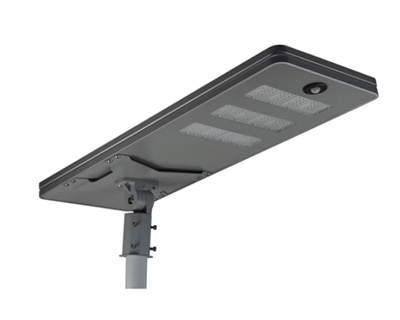

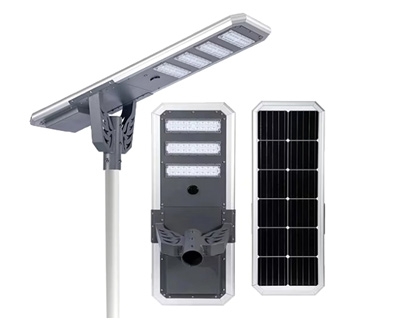

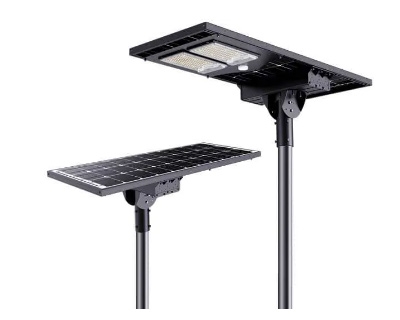

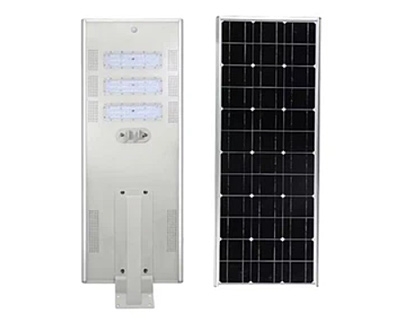

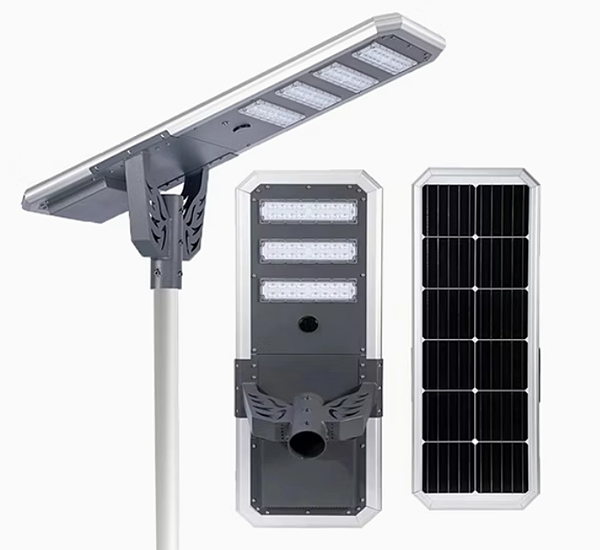

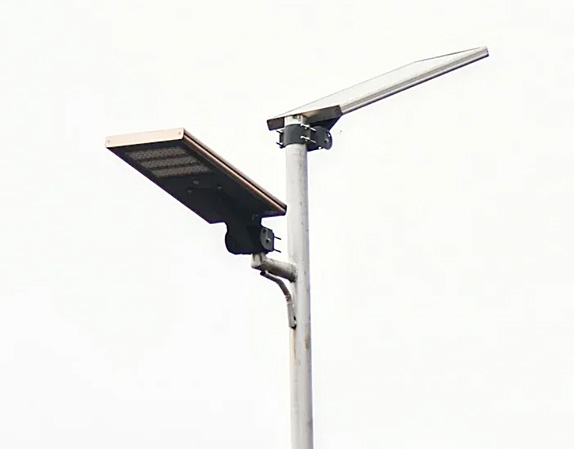

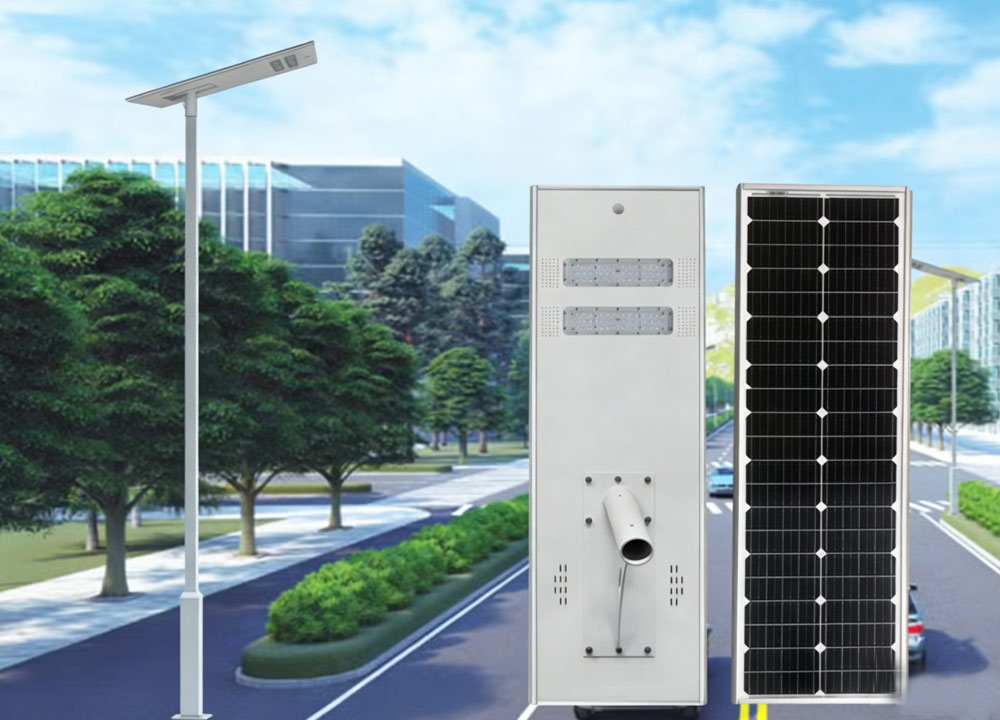

What Is an All in One Solar Street Light?

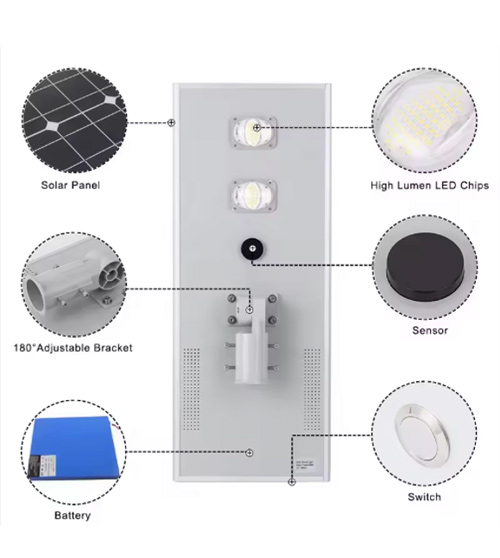

An all in one solar street light is a compact lighting system where all key components are integrated into one fixture:

Solar panel (energy collection)

Lithium battery (energy storage)

LED light source (illumination)

Smart controller (system management)

This integrated design eliminates external wiring and simplifies installation, making it ideal for fast-deployment lighting projects.

Types of All in One Solar Street Lights


100W All in One Solar Street Light A 100W All in One Solar Street Light is the ideal power rating for 6-meter poles in residential zones. We’ve optimized the LED driver to balance brightness with thermal management, ensuring the light output remains consistent throughout the night. It’s a precise engineering solution for contractors who need reliable coverage for standard road widths.	All-in-One Solar Parking Lot Lights For commercial areas, Solar Parking Lot Lights (All-in-One) offer a streamlined upgrade path. These units utilize a wide-angle Type III lens to distribute light evenly across expansive bays, reducing the number of poles required. It’s an efficient way to modernize facility lighting while maintaining a clean, cable-free environment.	Integrated Solar Street Lamp with Motion Sensor Our Integrated Solar Street Lamp with Motion Sensor uses high-frequency microwave technology to detect presence. By intelligently adjusting the illumination levels, the system maximizes its operational window. This ensures the all-in-one unit provides full visibility exactly when needed, maintaining high performance during seasonal changes in sunlight.

IP66 Waterproof All in One Solar Light In high-humidity or coastal regions, the IP66 Waterproof All in One Solar Light is essential. We use marine-grade aluminum and specialized gaskets to protect the internal optics and electronics from salt spray and moisture ingress. This robust construction ensures long-term stability in the most demanding outdoor climates.	All in One Solar Street Light for Garden & Pathway Designed for hospitality and landscape projects, the All in One Solar Street Light for Garden & Pathway prioritizes visual comfort. The integrated design eliminates bulky hardware, offering a sleek profile that complements modern architecture. We use specialized diffusers to provide glare-free lighting for pedestrians and recreational spaces.	Integrated LED Solar Light with 5-Day Autonomy To ensure continuous operation, this Integrated LED Solar Light is engineered for extended autonomy. The system is sized to provide a 5-day backup, meaning the lighting remains active even during consecutive overcast periods. It’s the professional choice for projects where uninterrupted night-time visibility is a critical requirement.

Features of All-in-one Solar Street Light

1. Designed by a professional industrial design team, integrating solarpanels, led sources, controller,battery, human body induction, and housing.

2. Adjustable angle mounting bracket, suitable for a variety of modelinglamp pole installationmethods.

3. Intelligent power adjustment, automatic weather judgment, reasonableplanning of dischargerules.

4. Inteligent charging and discharging management, soft and hard doubleprotection of charging anddischarging and intelligent equalization technology,battery cycles more than 2000 times

5. Smart remote control, equipped with drone remote control, ultra-longremote control distance of30 meters, can pass through obstacles, and can setfour lighting modes at will.

6. High-efficiency LED chips can reach 220L/W, which is more than twice theaverage brightness ofordinary LED light sources, with a luminous angle of 140degrees, and a wider irradiation area.

7. The whole lamp adopts modular minimalist design, easy disassembly,installation, andtransportation.

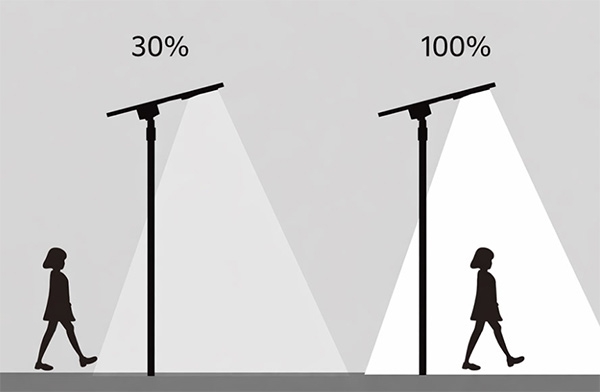

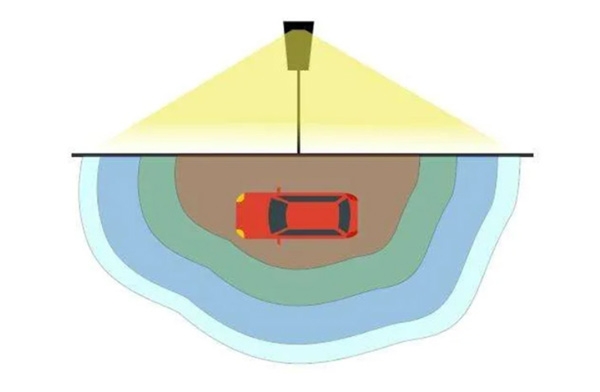

Microwave Motion Sensor
The third-generation sensor technology – microwave motion sensor with patent certificate. Auto-adjust light luminance according to ambient movement, save more energy, then the battery can last more days when cloudy and rainy.

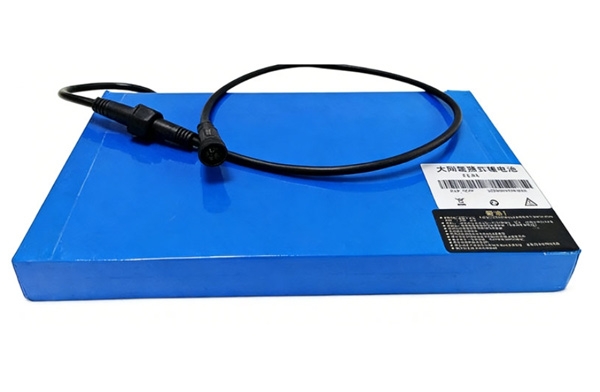

2000 Cycles LiFePO4 Battery
solar street lights are powered by LiFePO4 battery with min 2000 times life cycles, DOD 80%. Which means 8 years lifespan on average. The charge and discharge is managed by both hardware and software.It’s a maintenance-free system.

Bat-wing Lens
bat-wing lens leverage the maximum usage of lumens from solar street light. The professional light distribution can cover a wider area along the road.Reducing the light waste and increase the installation interval between lights (up to 50m), then save the number of light.

WHY CHOOSE US?

HIGH PURITY, HIGH CONDUCTIVITY, LOW ENERGY CONSUMPTION, STRONG CURRENT

LOAD CAPACITY, LOW HEAT GENERATION

why choose me

Manufacturer

STRONG STRENGTH OF BIG BRAND MANUFACTURERS

BUY WITH CONFIDENCE AND NO REGRETS

Manufacturer

OUR ADVANTAGES

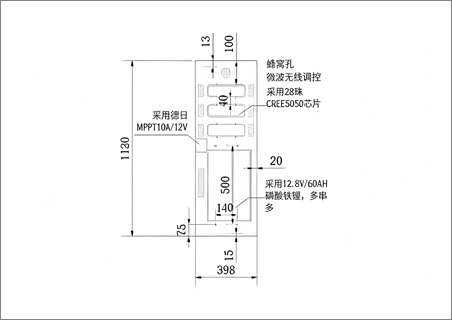

CAD Design	3D SceneSimulation Design

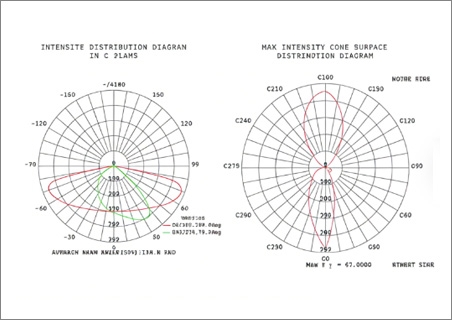

Specification &Color Customization	Light distribution curve test

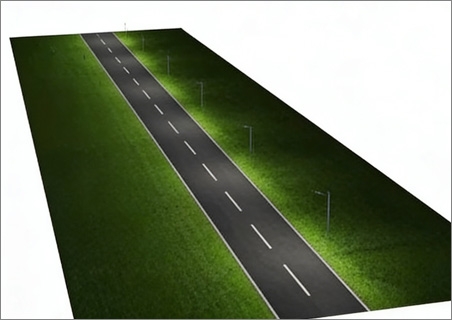

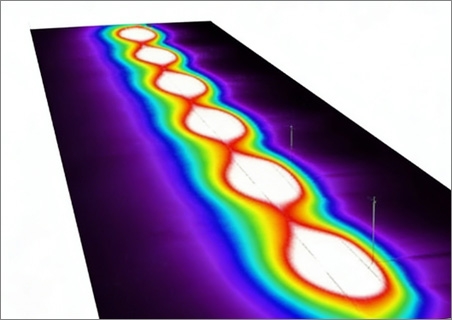

DIALux evo llumination simulation	Oversea Onsite Installation Guidance

Where to Use All-in-One Solar Street Lights

	Residential Streets The Solution: In neighborhoods, you don't want heavy machinery tearing up people's front yards for cables. Our All in One Solar Street Light just clamps onto the pole and it's done. The smart sensor is a lifesaver here—it keeps the integrated solar lamp dim when the street is empty, then kicks into full power the second a car or pedestrian enters the gate.
	Rural Road Projects The Solution: Most village projects have tight budgets and zero grid access. We built these Integrated Solar Street Lights to be "plug-and-play." You don't need a professional electrician; local workers can install dozens of these solar powered street lamps a day just using a basic ladder. It’s the fastest way to get light into remote areas.
	Public Parks & Gardens The Solution: For parks, aesthetics and safety are everything. There are no messy external wires or bulky boxes to ruin the landscape. The solar panel of this All in One LED Street Light sits flush on top, soaking up the sun all day. It’s a clean, modern look that provides enough light for evening joggers while keeping the installation completely "invisible."
	Parking Lots The Solution: Paving a parking lot is expensive—re-digging it to lay power lines is even worse. Our Integrated Solar Lighting skips the trenching entirely. You get strong, wide-angle light from a single all-in-one unit, making sure security cameras get a clear shot of every corner. It’s a huge win for managers who need to upgrade security overnight.
	Factory & Warehouse Perimeters The Solution: Industrial zones are dusty and tough on gear. We use a rugged aluminum shell so the internal parts of the All in One Solar Lamp stay bone-dry and dust-free. These lights act as your 24/7 silent security guard along the fence line, providing steady LED solar illumination that doesn't flicker, even in the worst storms.
	School Campuses The Solution: Safety is the only priority on a campus. With our Integrated Solar Power system, there are no high-voltage wires underground, meaning zero risk of electrical leaks during the rainy season. The "internal brain" manages the power so the all-in-one street light stays on even if it’s been cloudy for three days straight.
	Construction Sites The Solution: Construction sites change every week. You need a Portable Integrated Solar Light that can move with the job. Since everything is in one box, you can just unscrew the light from one temporary pole and move it to the next. No generators, no diesel costs, and no noise—just reliable solar street lighting for night shifts.
	Farm & Ranch Lighting The Solution: On a large farm, the nearest power outlet might be miles away. These All in One Solar Solutions give you total independence. We use high-quality lithium batteries because they handle the temperature swings of open fields. Whether it’s lighting up a barn or a remote gate, it’s a "set it and forget it" solar lamp for farmers.

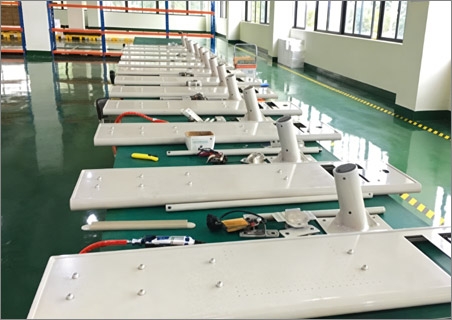

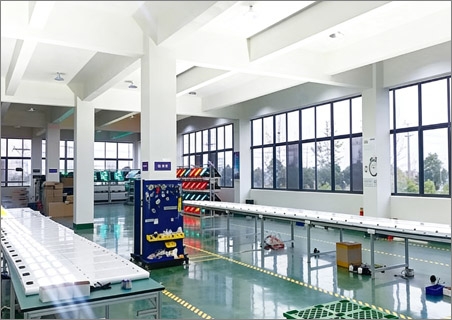

PRODUCT PRODUCTION WORKSHOP

Direct Manufacturer Advantage: Partnering with Jieyao means working directly with our Yangzhou-based factory, not a middleman.

We operate full in-house production lines for poles, LED luminaires, and solar systems.

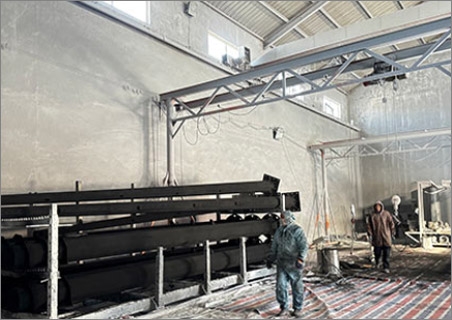

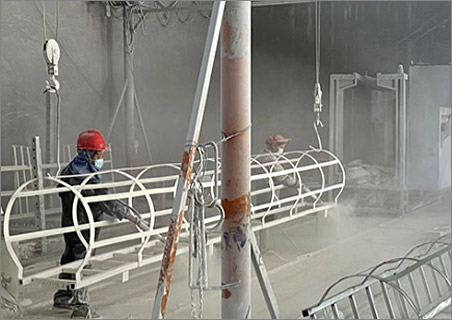

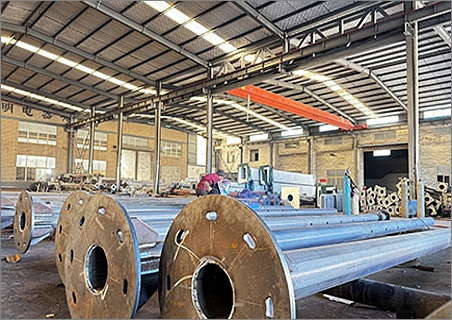

Our facility features CNC cutting, automatic welding, hot-dip galvanizing, and photometric testing labs.

This vertical integration ensures structural integrity, high corrosion resistance, and stable lead times for high-volume infrastructure projects.


(Battery Assembly Workshop)Our facility for building high-capacity lithium battery packs to ensure long-term energy storage.	(Solar Panel Assembly Workshop)Where we manufacture high-efficiency silicon panels to maximize solar energy harvesting.	(Luminaire Assembly Workshop)The final production line where we integrate all components into a rugged aluminum housing.

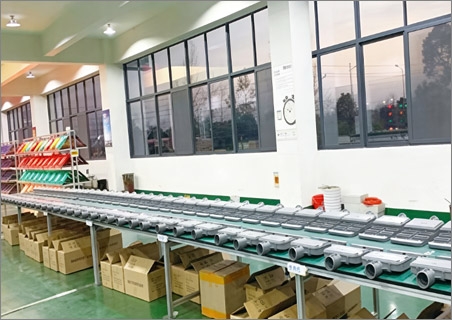

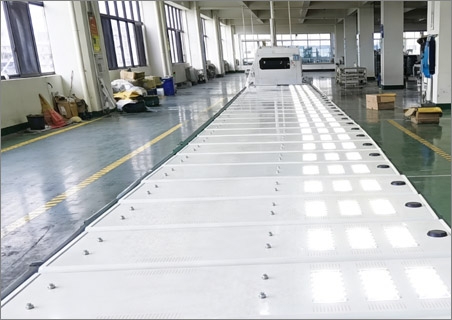

(LED Light Source Assembly Workshop)A precision environment dedicated to mounting high-lumen LED chips for optimal light distribution.	(Electrostatic Spraying Equipment) : Utilizes advanced electrostatic technology to apply weather-resistant polymer coatings, ensuring superior adhesion and anti-corrosion.	(Welding Workshop) : Specialized station for heavy-duty welding of base flanges, service doors, and structural reinforcements.

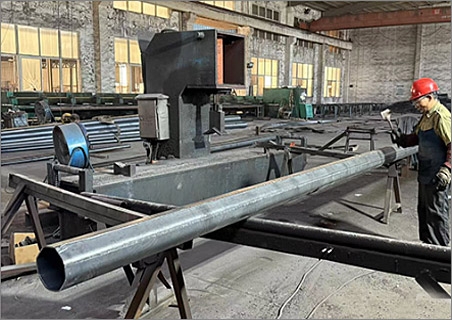

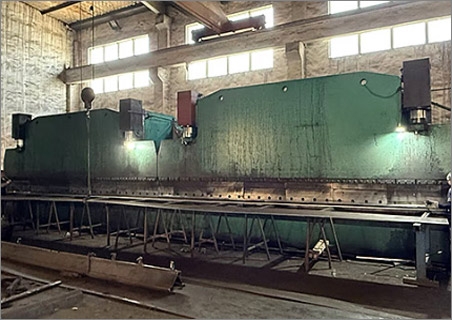

(1000T Plate Rolling Machine): Converts raw steel sheets into high-strength round or octagonal poles with precision geometry.	(Powder Coating WorkshopProcess):Electrostatic Polymer Fusion.This ensures 25+ years of superior anti-corrosion and UV resistance for every pole.	(Pole Straightening Machine):Calibrates each shaft to eliminate deviations, ensuring 100% verticality and architectural precision.

Certifications

Compliance & Standards: Our products are engineered and tested to meet international safety and performance requirements.

From CE and RoHS for electronic safety to specialized ISO manufacturing standards,

Jieyao Lighting ensures every component—from LED drivers to steel poles—is fully certified for global infrastructure tenders.

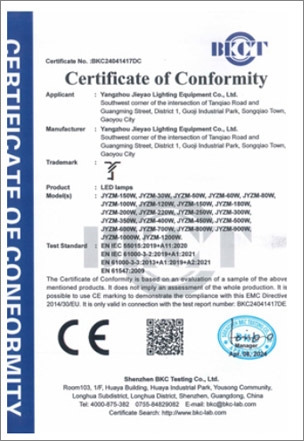

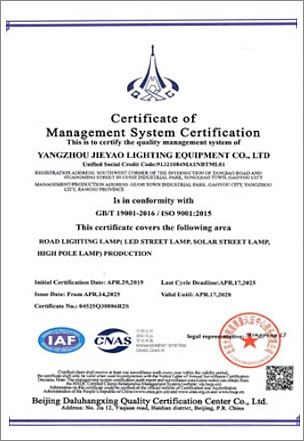

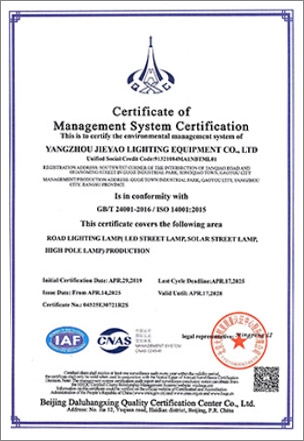

GB/T 45001-2020/ISO 45001:2018	LED lamps CE	GB/T 19001-2016/ISO 9001:2015

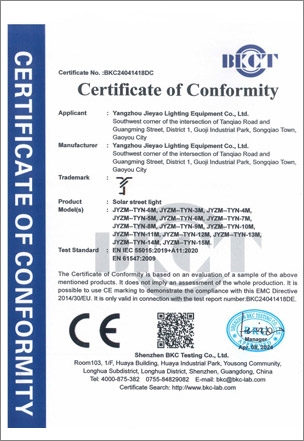

GB/T 24001-2016/ISO 14001:2015	CCC Certification	Solar street light CE

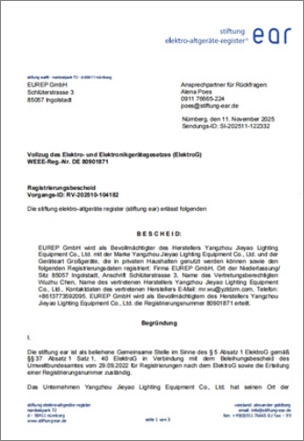

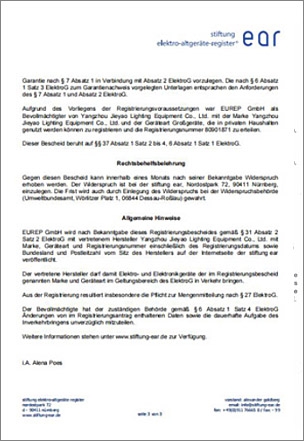

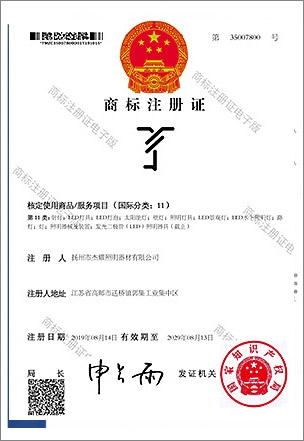

Trademark Registration Certificate	WEEE Certificate	WEEE Certificate

Fast response, factory-direct supply, and customized lighting solutions available.

Email: mr.xu@yzldzm.com | Tel: +86 13815843784 | WhatsApp: +86 13815843784

FAQS

1. What exactly is an All-in-One Solar Street Light?

It’s a streamlined design where the solar panel, the battery, and the LED are all built into a single, high-strength housing. Unlike traditional setups with separate parts, the All-in-One Solar Street Light is a self-contained unit that’s much easier to ship and install.

2. Does an All-in-One LED Solar Light work on cloudy days?

Yes. Our All-in-One LED Solar Lights are designed with enough battery capacity to bridge several days of bad weather. The internal system is smart enough to manage the power, ensuring the light stays active even when the sun isn't hitting the panel directly for a day or two.

3. How does the All-in-One Solar Power system know when it’s dark?

The solar panel on top of the All-in-One Solar Power unit acts as a built-in light sensor. It automatically detects when the sun goes down to trigger the LEDs and shuts them off at sunrise to begin the daily recharging cycle.

4. Why should I choose an All-in-One Solar Street Light with a Motion Sensor?

The Motion Sensor is a major advantage for battery longevity. The All-in-One Solar Street Light stays at a low, energy-saving brightness when the area is empty, but instantly switches to 100% full power when it detects movement. This ensures you have maximum light exactly when it’s needed.

5. What is the typical lifespan of an All-in-One Solar Light battery?

We use high-grade Lithium (LiFePO4) batteries in every All-in-One Solar Light. These are much more durable than old-style batteries, typically lasting 5 to 8 years before they need a replacement, depending on the local climate and usage.

6. Do I need to clean the panel on my Integrated Solar Street Lamp?

In most cases, rain will wash away the dust. However, if you are in a very sandy or dry area, a quick wipe of the Integrated Solar Street Lamp’s panel every few months will keep the charging efficiency at its highest level.

7. Is every All-in-One Solar Street Light waterproof?

Quality matters here. Our units are rated IP66 Waterproof, meaning the All-in-One Solar Street Light is completely sealed against dust and heavy rain. It’s built to handle monsoons and coastal storms without any internal damage.

8. What maintenance is required for All-in-One Solar Lighting?

Practically none. Because the All-in-One Solar Lighting system is fully integrated with no external wires to fray or corrode, there’s nothing to fix. It’s a "set it and forget it" solution for most municipal and private projects.

9. Can I control the settings on my All-in-One Solar Lamp?

Yes. Most of our All-in-One Solar Lamps come with a remote control. You can use it to switch between different working modes, like constant brightness or motion-sensor mode, to suit your specific site requirements.

10. When should I use an All-in-One Solar Street Light instead of a split-type?

Choose the All-in-One Solar Street Light for 90% of standard road, park, and parking lot projects where you want a fast, clean, and low-maintenance setup. Split-type lights are usually only for very specialized high-power industrial needs.

Related Products

Split Type Solar Street Light Manufacturer with Separated Panel and Battery Design

Reliable Split Solar Street Light for highways and big projects. High power, 5+ nights backup, and real 10-year lifespan.

Solar Street Light Manufacturer in China

We are committed to producing practical and modern solar-powered street lights, including all-in-one solar street lights, and smart solar street lights.

Solar Street Light with Motion Sensor

Featuring an intelligent motion sensor, this solar street light automatically adjusts brightness based on movement, improving safety and optimizing energy usage.

All-in-One Solar Street Light: Pro-Grade Lighting for Urban Roads

Our All-in-One system integrates Tier-1 solar panels, LEDs, and LiFePO4 batteries. It’s a rugged, cable-free solution for streets, parks, and public zones.

FAQ,If you have any other questions, please contact us immediately

What is the expected lifespan of a solar street light?

LED Fixture: >50,000 hours; Solar Panel: 25 years; Lithium Battery: 5-8 years; Controller: 5-10 years.

How long is the warranty period for solar street lights?

We offer a 3-5 year full-system warranty. If a quality issue arises, we will ship free replacement parts immediately after verification.

Can solar street light withstand extreme heat or cold?

Yes. We provide specialized batteries for extreme climates, including heating films for cold regions and heat-resistant lithium cells for tropical environments.

Are solar street lights more expensive than traditional LED street lights?

To give you a straight answer: Yes, the upfront cost of a Solar LED Street Light is higher than a traditional AC LED light. However, if you look at the "Total Cost of Ownership," solar often wins by a landslide.

How do you handle shipping and packaging for bulky Solar street lights?

We use reinforced cartons and wooden pallets to prevent damage during long-distance transit. For large projects, we recommend FCL (Full Container Load) sea freight to minimize shipping costs.

What international certifications do your products have?

Our solar street lights carry CE, RoHS, IP66, IK10, and ISO 9001 certifications, meeting the standards for government and commercial projects worldwide.

Do you offer OEM or ODM customization services?

Yes. We can customize power output, battery capacity, logo branding, and even industrial design based on your project requirements.

Do solar panels need frequent cleaning?

In dusty or low-rainfall areas, we recommend cleaning every 6 months. Heavy dust accumulation can reduce charging efficiency by over 20%.

Why does my solar light turn off shortly after sunset?

This is usually due to battery aging, panels being shaded causing insufficient charge, or incorrect controller settings. We can assist you with remote troubleshooting.

Does a solar street light require wiring?

No. It is a self-contained power system that requires no trenching, wiring, or grid connection, significantly reducing installation and labor costs.

What is the optimal tilt angle for installing solar panels?

The optimal angle depends on your local latitude. Generally, panels should face the equator (South in the Northern Hemisphere) at an angle equal to your latitude plus $5^{\circ}$ to $15^{\circ}$.

Do you use Lithium or Gel batteries in your solar street lights?

We primarily use LiFePO4 (Lithium Iron Phosphate) batteries. Compared to Gel or Lead-acid batteries, LiFePO4 offers a much longer cycle life (over 2000 cycles) and superior high-temperature resistance.

Monocrystalline vs. Polycrystalline: Which solar panel should I choose?

Monocrystalline panels offer higher efficiency (above 20%) and perform better in low light, making them ideal for all-in-one designs. Polycrystalline panels are more budget-friendly for large-scale projects.

Can solar street lights work during rainy or cloudy days without sun?

Yes. Our systems are engineered with "Autonomy Days," typically supporting 3-5 consecutive days of illumination even in complete absence of direct sunlight.

What is the typical lighting duration of a solar street light?

Our products are designed to illuminate for 10-12 hours per night. With intelligent controllers, we can customize lighting modes, such as full power for the first 4 hours and energy-saving mode thereafter.
