What is LED Street Lights？Designed for roadways, sidewalks, and urban spaces, the JIEYAO LED street light offers a high-intensity, energy-efficient, and reliable lighting solution. By replacing conventional lamps with advanced LED technology and precision optics, this fixture achieves an impressive 180Lm/W efficiency. The result is a uniform light distribution that significantly enhances visibility and safety across diverse outdoor environments.Beyond performance, its aviation-grade aluminum construction and IP65/IP66 ratings ensure resilience against the harshest weather. For modern infrastructure management, integrated smart controls allow for intelligent dimming and remote monitoring, maximizing energy savings while streamlining operational convenience. |
|
Selecting the correct LED Street light is not about finding the highest wattage; it is about matching the fixture’s performance to the environment. A common mistake in procurement is over-lighting residential areas or under-lighting main roads, both of which lead to wasted budget and safety concerns.
To ensure your project meets safety standards while staying within budget, you must categorize your needs based on the road type, traffic density, and mounting requirements. The following guide provides a direct reference for the most common lighting applications.
LED Street Light Selection Guide by Application
Application | Road Type | Recommended Wattage | Typical Height | Key Technical Focus |
Residential | Narrow streets, sidewalks | 30W - 60W | 4 - 6m | Anti-glare & Light Control |
Urban Roads | Standard city streets | 80W - 120W | 8 - 10m | Uniformity & Visual Clarity |
Highways | Multi-lane motorways | 150W - 240W+ | 12 - 15m | High Lumens & Long Throw |
Industrial | Parking lots, logistics hubs | 100W - 150W | 10 - 12m | Durability & Wide Beam |
Applications & Advantages of LED Street Lights
| Residential Areas & Sidewalks In neighborhoods and on footpaths, lighting is more about comfort and a sense of security than raw power. You needLED Street Lights that illuminate the ground clearly without creating a harsh glare or shining through bedroom windows. We focus on softer light options that make the community feel welcoming and safe for evening walks, all while keeping the energy bill as low as possible for the residents. |

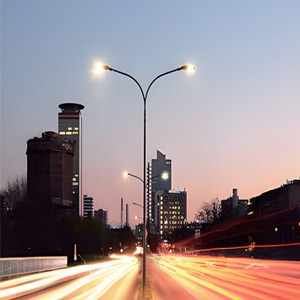

| Urban Roads & City Streets Busy city centers with heavy traffic require high visibility for both drivers and pedestrians. Our LED Road Lights are designed to eliminate "dark spots" between poles, ensuring that crosswalks and intersections are evenly lit. This helps drivers react faster and makes pedestrians feel more confident crossing the street, significantly reducing the risk of nighttime accidents in the heart of the city. |
| Highways & Expressways On high-speed roads, the goal is simple: see further and see clearer. When driving at high speeds, motorists must be able to spot obstacles from a long distance. We provide high-output LED Road Lights that use specialized lenses to "throw" light much further down the asphalt. These fixtures are built tough to handle constant wind and the vibrations from heavy traffic, meaning fewer repairs and a much longer life on the road. |
| Industrial Zones & Logistics Hubs For factories and large yards, reliability and cost-savings are the top priorities. You need LED Street Lights that can work through heavy rain or extreme heat without failing. Our solutions provide wide, bright coverage for parking lots and loading docks, allowing your crew to work as safely as they do during the day. Most importantly, switching to these lights can cut your facility's power costs by over half compared to older systems. |
LED Street Light - Technical Specifications
Parameter | Specifications & Details |
Model Series | JIEYAO-SL-Professional |
Luminous Efficacy | Up to 180 Lm/W (High-efficiency version) |
Wattage Options | 30W / 60W / 100W / 120W / 150W / 200W / 240W |
Light Source | High-performance SMD 3030 / 5050 Chips |
Input Voltage | AC 100-277V (50/60Hz) |
Color Temperature (CCT) | 3000K (Warm) / 4000K (Neutral) / 5000K / 5700K (Cool) |
Color Rendering Index (CRI) | Ra > 70 (Standard) / Ra > 80 (Optional) |
Beam Angle / Optics | Type II / Type III (Asymmetric Lens) |
Housing Material | Die-cast Aviation-grade Aluminum |
Ingress Protection | IP66 Waterproof & Dustproof |
Impact Resistance | IK08 / IK09 |
Surge Protection (SPD) | 10kV (Standard) / 20kV (Optional) |
Working Temperature | -40°C to +50°C |
Lifespan (L70) | > 50,000 Hours |
Certifications | CE, RoHS, CB, ISO9001 |
Standard 5-Year Warranty included. Extended warranty options available upon request.
Looking for a durable lighting solution for your next project ?
Request a technical datasheet and a competitive quote,customized lighting solution
Contact the Jieyao team at [ Phone: +86 13815843784 /WhatsApp: +86 13815843784 ]
or visit our official site:www.jieyaolighting.com
LED Street Light - FAQ
1. How much can I really save by switching to LED Street Lights? In most projects, you will see a 50% to 70% reduction in energy costs immediately. Because our LED Street Lights turn almost all electricity into light rather than wasted heat, you can use a lower wattage fixture to achieve the same brightness as old, power-hungry lamps.
2. Can these LED Road Lights survive extreme storms or salt air? Yes. We use high-grade, die-cast aluminum with a protective powder coating. Our LED Road Lights are rated IP66, meaning they are completely sealed against heavy rain, dust, and even corrosive salt spray in coastal areas, ensuring the internal electronics stay bone-dry.
3. What happens if a single chip fails in one of your LED Road Lights? Your street won't go dark. Our LED Road Lights use a multi-chip design (a cluster of LEDs). If one tiny diode fails, the rest of the light continues to function normally, maintaining safety until your next scheduled maintenance check.
4. How do you handle heat dissipation in hot tropical climates? Heat is the enemy of electronics, so our LED Street Lights are designed with deep cooling fins built directly into the aluminum body. This acting "heat sink" pulls warmth away from the chips, allowing them to run cool even in 50°C (122°F) temperatures.
5. Is the maintenance for LED Road Lights complicated? It’s actually much simpler. Since there are no bulbs or ballasts to replace every year, maintenance is minimal. If a part like the power driver ever needs replacing, our LED Road Lights feature a tool-less entry design, allowing a technician to fix it in minutes without complex tools.
6. Can your LED Street Lights handle unstable voltage in remote areas? Yes. We use wide-voltage drivers (100-277V) designed to absorb fluctuations. Whether it’s a sudden surge or a brownout in a rural grid, our LED Street Lights stay steady and won’t flicker or burn out like cheap alternatives, ensuring the road stays lit no matter the power quality.
7. How do you protect these LED Road Lights from lightning strikes? Standard lights often fail during storms, but our LED Road Lights come with built-in 10kV or 20kV surge protection. This acts like a shield, diverting high-voltage spikes away from the sensitive LED chips and keeping your infrastructure investment safe during heavy lightning seasons.
8. Do your LED Street Lights meet international "Green" bidding requirements? Absolutely. Beyond being mercury-free, our LED Street Lights are designed for maximum recyclability. By hitting the 180Lm/W efficiency mark, they help your project qualify for carbon credit programs and meet the strict environmental standards often required in government tenders.
9. How do you ensure the LED Street Lights don't get damaged during sea shipping? We don’t settle for thin boxes. Each of our LED Street Lights is packed in reinforced, vibration-tested foam and multi-layer cartons. This ensures that even after a month at sea and bumpy truck rides to the site, every unit arrives in perfect calibration and ready to install.
10. Can I add smart "City Management" features to these LED Road Lights later? Yes, they are future-proof. Our LED Road Lights can be equipped with a NEMA socket on top. This allows you to plug in a smart controller whenever you’re ready, enabling features like remote dimming, GPS tracking, and automatic fault reporting across your entire city network. |
