How to Choose the Right High Mast Light for Your Project

How to Choose the Right High Mast Light for Your Project

High mast lighting is used in large outdoor areas that require wide coverage and stable illumination, including highways and interchanges, ports, airports, stadiums, logistics centers, parking areas, and industrial sites. Compared with conventional street lights, a high mast light covers a larger area with fewer poles, reducing infrastructure and maintenance requirements.

Choosing the right high mast light requires more than light pole height or fixture wattage. You need to consider lighting performance, installation conditions, maintenance access, and environmental factors.

This guide helps you identify the key factors when you choose a high mast lighting system for your project.

What is a High Mast Lighting System?

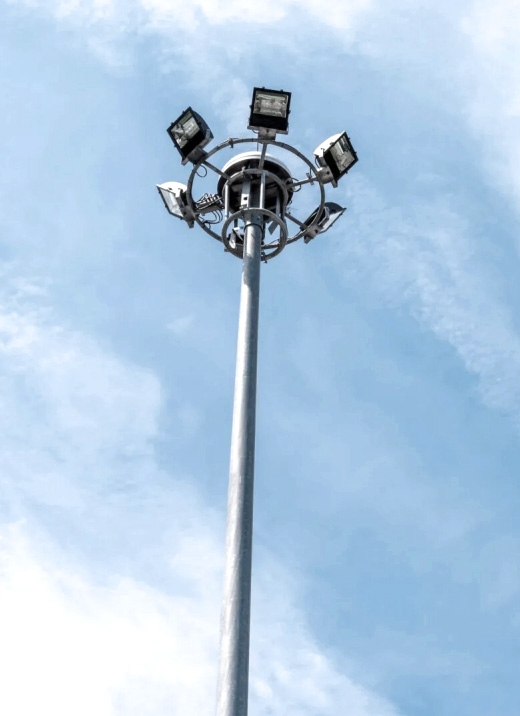

A high mast lighting system uses a tall pole to light large outdoor areas such as highways, ports, airports, stadiums, and open industrial sites.

A complete system includes:

▶ High mast pole

▶ LED luminaires

▶ Lighting ring or headframe

▶ Lowering system or fixed head structure

▶ Foundation system

Most poles range from 15 to 50 meters or higher based on project requirements. Higher mounting height reduces the number of poles and simplifies site layout in large-area projects.

Identify Your High Mast Lighting Project Requirements

Different high mast lighting projects require different lighting levels, pole heights, and fixture layouts based on site conditions and application type.

Highway Interchanges High Mast Lighting

Highway interchanges use high mast lighting systems to provide wide and uniform coverage for multi-lane traffic areas.

Key requirements:

▶ High mast lighting for highway interchanges coverage

▶ Uniform road illumination for driving safety

▶ Reduced dark zones on road surfaces

▶ Stable outdoor performance of high mast lights

Recommended high mast lighting pole height: 20–35 meters

Port and Container Yard High Mast Lighting

Ports and container yards rely on high mast lighting systems for 24-hour operations and cargo handling areas.

Key requirements:

▶ High mast lighting for port container yard areas

▶ Large-area illumination for logistics operations

▶ Corrosion-resistant high mast light design

▶ Wind-resistant structure for coastal environments

Recommended high mast lighting pole height: 25–45 meters

Airport High Mast Lighting Systems

Airports use high mast lighting systems to ensure long-distance visibility while controlling glare for safe operations.

Key requirements:

▶ High mast lighting for airport apron and runway surroundings

▶ Controlled glare high mast lighting design

▶ High reliability lighting system for aviation areas

▶ Stable illumination for ground operations

Recommended high mast lighting pole height: 30–50 meters

Stadium and Sports Facility High Mast Lighting

Stadiums require high mast lighting systems that support training, competitions, and broadcasting-level visibility.

Key requirements:

▶ High mast lighting for stadium and sports field applications

▶ High illumination level for competition use

▶ Broadcast-ready lighting performance

▶ Uniform field lighting coverage

Recommended high mast lighting pole height: 25–60 meters

Choose the Appropriate Pole Height

Pole height is one of the most important factors in high mast lighting design. It directly affects lighting coverage, uniformity, installation cost, and structural requirements.

Application

Recommended Pole Height

A taller high mast pole covers a larger area, but it also increases foundation size and structural load. Pole height needs to match both lighting requirements and project cost.

When selecting high mast lighting pole height, check:

▶ Site dimensions and coverage area

▶ Required illumination level for the project

▶ Local wind load conditions

▶ Maintenance access method

▶ Budget limits for installation and structure

Select the Right LED Wattage

LED wattage should be selected according to mounting height, lighting area, and target illumination level.

Typical wattage ranges include:

Pole Height

Typical LED Wattage

High mast light selection is not based on wattage alone.

Key factors include:

▶ Luminous efficacy

▶ Beam angle

▶ Fixture quantity

▶ Pole spacing

▶ Lighting simulation results

LED high mast lighting systems use less power and support lower operating costs than conventional lighting technologies.

Common High Mast Lighting Selection Mistakes

When you select a high mast light, fixture wattage alone does not determine lighting quality. Your lighting design should match illumination targets, coverage area, pole height, and beam angle.

Ignoring Wind Load Conditions

If your project is located in a high-wind area, local wind load data should be included in the pole and foundation design. Wind conditions affect structural stability and equipment safety.

Selecting Pole Height Based Only on Initial Budget

A shorter high mast pole may reduce initial investment, but your project may require additional poles and fixtures to achieve the required lighting coverage.

Overlooking Maintenance Access

Before you select a high mast lighting system, consider how fixtures will be inspected, serviced, and replaced. Maintenance access affects long-term operating costs and service efficiency.

Using the Same High Mast Lighting Configuration for Every Project

Your lighting requirements may differ based on the application. A high mast lighting layout used for a parking area may not be suitable for ports, airports, logistics centers, or highway interchanges.

High Mast Lighting Solutions from Jieyao Lighting

Every high mast lighting project has different installation conditions and lighting requirements.

Jieyao Lighting manufactures:

▶ High mast poles

▶ LED high mast lights

▶ Lowering high mast systems

▶ Fixed head high mast systems

▶ Galvanized steel lighting poles

You can choose pole height, fixture quantity, and lighting layout according to your project requirements and installation environment.

High Mast Lighting FAQ

1. How many LED fixtures are installed on a high mast pole?

Usually 4–16 LED fixtures are installed on one high mast pole, depending on the lighting ring design and project layout.

2. How much area can one high mast light cover?

One high mast light covers about 10,000–40,000 m², depending on pole height and fixture arrangement.

3. Can a high mast lighting system be customized for my project?

Yes. You can choose pole height, LED wattage, fixture quantity, and system structure based on your project requirements.

4. What information is required for a high mast lighting quotation?

You need to provide site type, lighting area size, pole height, wind load requirement, power conditions, and target illumination level.

5. How are high mast lighting systems maintained?

Lowering systems allow ground-level maintenance. Fixed systems require lifting equipment for inspection and replacement.
